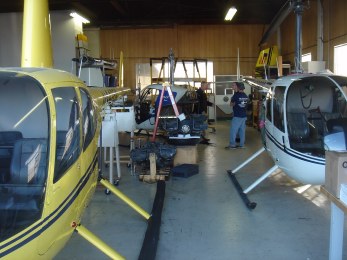

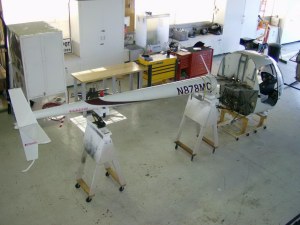

	Home - Helicopters for Sale - R44 Parts - R22 Parts - Overhaul Kits Used Parts for Sale Contact Full shop and maintenance facility Overhaul kits for R22 and R44 in stock along with popular service parts, oils and lubricants To Find your part Number Type - Ctrl+F (Control key and the F key) Type in number of key word ROBINSON HELICOPTER COMPANY R22 Spare Parts Price List R22 Price List: "The prices shown reflect the 2008 prices. 2009 prices may vary. Please send us an RFQ at robinsonhelicopterparts@gmail.com for a current pricing quote." PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 1 A003-2 Insulation (See A003-2BL,BR,GY,TN) A003-2BL Insulation, 1 in. Thick, Blue 113.00 A003-2BR Insulation, 1 in. Thick, Brown 113.00 A003-2GY Insulation, 1 in. Thick, Gray 113.00 A003-2TN Insulation, 1 in. Thick, Tan 113.00 A003-3 Insulation (See A003-3BL,BR,GY,TN) A003-3BL Insulation, 1/2 in. Thick, Blue 59.50 A003-3BR Insulation, 1/2 in. Thick, Brown 59.50 A003-3GY Insulation, 1/2 in. Thick, Gray 59.50 A003-3TN Insulation, 1/2 in. Thick, Tan 59.50 A003-4 Insulation, RH, 1/2 in. Thick 22.75 A003-5 Insulation, LH, 1/2 in. Thick 23.00 A003-10 Insulation (See A003-10BL,BR,GY,TN) A003-10BL Insulation, 1/2 in. Thick, Blue 21.25 A003-10BR Insulation, 1/2 in. Thick, Brown 21.25 A003-10GY Insulation, 1/2 in. Thick, Gray 21.25 A003-10TN Insulation, 1/2 in. Thick, Tan 21.25 A003-13LTR* Seat Back Assy., LH, Leather 400.00 A003-13VLR* Seat Back Assy., LH, Velour 332.00 A003-14LTR* Seat Back Assy., RH, Leather 400.00 A003-14VLR* Seat Back Assy., RH, Velour 332.00 A003-15 Insulation (See A003-15BL,BR,GY,TN) A003-15BL Insulation, 1/2 in. Thick, Blue 21.75 A003-15BR Insulation, 1/2 in. Thick, Brown 21.75 A003-15GY Insulation, 1/2 in. Thick, Gray 21.75 A003-15TN Insulation, 1/2 in. Thick, Tan 21.75 A003-16 Insulation (For ships with heater installed) 25.25 A004-2 Empennage Assy. 3,124.00 A005-2 Blade & Spindle Assy. (See A005-6) A005-4 Hub & Bearing 2,500.00 * Prices are subject to change without notice. Normal discount does not apply. * Please specify color. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 2 Effective January 15, 2008 A005-6* Blade & Spindle Assy. 17,170.00 A006-1 MRGB & Mast Assy. (See A006-6) A006-6* MRGB & Mast Assy. (Yoke not incl.) 17,910.00 A007-4 Strut Assy. 278.00 A007-5 Fan Shaft & Bearing Assy. 1,312.00 A008-2 Tail Rotor Assy. (See A008-4) A008-4 Tail Rotor Assy. 4,870.00 A010-2 Fuel Tank Assy., Main 3,093.00 A011-2 Arm Assy. (See D756-2) A012-2 Cyclic Pivot Assy. 1,948.00 A012-9 Grip Assy., Removable 803.00 A012-14 Cyclic Pivot Assy. 1,997.00 A012-19 Yoke Assy. (Also order A105-6) 529.00 A012-20 Pivot Assy. (Also order C105-3) 654.00 A014-5 Shackle Assy. 337.00 A014-6 Support Assy., Fwd 251.00 A014-7 Support Assy., Aft 151.00 A014-8 Landing Gear Assy. 4,782.00 A014-11 Skid Tube Assy., LH 734.00 A014-12 Skid Tube Assy., RH 734.00 A014-15 Mariner Skid Tube, LH 809.00 A014-16 Mariner Skid Tube, RH 809.00 A014-18 Strut Fitting Assy. 942.00 A015-3 Panel, LH 125.00 A015-4 Panel, RH 106.00 A015-5 Skin, LH 42.25 A015-6 Skin, RH 42.25 A015-9 Skin, LH 55.50 A015-10 Skin, RH 48.75 A015-11 Strip, LH & RH 13.75 A017-1.CS MR Swashplate Instl. 5,248.00 A017-2 MR Swashplate Sub-Assy. 3,554.00 A018-1 Clutch Assy. 6,464.00 A018-2 Clutch Assy. (Metalized sheave) 7,602.00** A019-3 Valve Assy. (See B019-3) * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 3 A019-6 Grille 22.25 A019-7 Heat Shrink, 3/8 O.D. x 3.1 in. 3.95 A019-10 Blower Assy. (See A643-2) A020-1 Frame Assy., Lower LH 1,719.00 A020-2 Frame Assy., Upper 3,891.00 A020-3 Strut Assy. 205.00 A020-84 Frame Assy., Lower RH 1,977.00 A021-1 TR Gearbox Assy. (See B021-1) A022-3 Compass Assy., 14V 268.00 A023-22* Tailcone Assy.(A148-1 Bulkhead) 3,990.00 A023-22.CS* Tailcone Assy. (Painted white) 3,990.00 A023-23* Tailcone Assy.(A148-2 Bulkhead) 3,990.00 A023-23.CS* Tailcone Assy. (Painted white) 3,990.00 A026-1* Door Assy., LH, Clear 2,418.00 A026-2* Door Assy., RH, Clear 2,418.00 A026-11* Door Assy., LH, Tint 2,461.00 A026-12* Door Assy., RH, Tint 2,461.00 A028-1 Fuel Tank, Main 2,803.00 A028-7 Frame 130.00 A031-1 Pitch Control Assy. 1,199.00 A032-2 Skin, Cowling 68.50 A032-3 Skin (See B429-2) A032-4 Skin 45.00 A032-5 Door, Cowling 70.25 A032-6 Skin 10.75 A032-7 Doubler 13.25 A032-8 Frame (See B428-1) A032-9 Frame (See B428-1) A032-10 Doubler 8.75 A032-11 Doubler 11.25 A032-12 Stiffener 20.25 A032-13 Stiffener 17.25 A032-14 Stiffener 19.75 A032-15 Stiffener 28.00 A032-16 Channel (See B423-7) * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 4 Effective January 15, 2008 A032-17 Hinge 32.50 A033-1 Console Assy., Lower 1,120.00 A034-1* Float Landing Gear Assy. 16,335.00 A038-5 Spring Assy., Collective 510.00 A038-6 Spring Assy., Collective 510.00 A038-7 Spring Assy., Collective 510.00 A039-3 Spotlight Assy. 734.00 A039-4 Position Light Assy., LH, 14V 215.00 A039-5 Position Light Assy., RH, 14V 215.00 A039-9 Spotlight Assy. (See A039-14) A039-14 Spotlight Assy. 734.00 A041-1 Damper Assy. 444.00 A041-3 Arm, Thin 17.25 A041-5 Washer 11.75 A041-6 Washer 14.50 A041-8 Clip (S/N 0001-0748) 21.00 A041-9 Spacer (S/N 0001-0748) 16.50 A041-10 Pin .60 A041-11 Bearing Assy. 351.00 A041-12 Damper Assy. 453.00 A041-13 Arm, Thick 40.25 A042-1 Stabilizer Assy., Upper Vertical 845.00 A043-1 Stabilizer Assy., Lower Vertical 823.00 A044-1 Stabilizer Assy., Horizontal 1,374.00 A045-2 Diode Assy. 18.50 A046-1 Frame Assy., Lower LH 2,142.00 A046-2 Frame Assy., Lower RH 1,755.00 A046-3 Strut Assy. 231.00 A047-1 Frame Assy., Upper, Mariner 4,492.00 A048-1 Cyclic Friction Assy. 743.00 A048-2 Arm Assy. 49.75 A050-1 Float Stabilizer Assy. 1,146.00 A051-1 Clutch Actuator Assy. 4,799.00 A051-2 Gearmotor Assy. 993.00 A053-2 Switch Assy. 141.00 * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 5 A057-2 Air Box Assy. 971.00 A057-5 Bottom Cover, Mariner 255.00 A058-2 Over Temperature Switch Assy. 135.00 A058-3 Sender & Line Assy. 468.00 A058-5 Carb. Air Temperature Probe 324.00 A059-2 Harness Assy., Cabin 1,611.00 A059-3 Harness Assy., Console 1,290.00 A059-21 Cable 79.00 A059-22 Cable 59.00 A063-1 Wheel Assy., Ground Handling 381.00 A064-3 Chronometer Assy., 14V 327.00 A067-581 Wire 69.00 A067-587 Wire 156.00 A067-673 Wire 48.75 A071-2 Spring Assy. 88.25 A072-7 Clock Assy., 14V 327.00 A072-9 Light Tray Assy., 14V 68.00 A077-2 Liner 18.25 A101-4 Rod End, Male 101.00 A102-4 Rod End, Female 161.00 A103-5 Bearing 80.75 A104-3 Bearing 64.75 A105-1 Journal, Bearing 49.75 A105-3 Journal, Bearing 45.25 A105-4 Journal, Bearing 49.75 A105-5 Journal, Bearing 45.25 A105-6 Journal, Bearing 45.25 A105-7 Journal, Bearing 45.25 A105-9 Journal, Bearing 49.75 A105-10 Journal, Bearing 52.50 A105-11 Journal, Bearing 49.75 A105-15 Journal, Bearing (See A105-17) A105-16 Journal, Bearing (See A105-17) A105-17 Journal, Bearing 60.75 A106-1 Journal, Bearing 202.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 6 Effective January 15, 2008 A106-2 Journal, Bearing 202.00 A106-3 Journal, Bearing 202.00 A106-4 Journal, Bearing 202.00 A106-5 Journal, Bearing 202.00 A106-6 Journal, Bearing 202.00 A115-1 Spacer 18.50 A117-5 Shim 10.75 A117-6 Shim 10.75 A117-7 Shim 10.75 A117-8 Shim 10.75 A117-21 Shim 10.75 A117-22 Shim 10.75 A117-45 Shim 10.75 A117-46 Shim 10.75 A117-47 Shim 10.75 A118-2 Shim 26.00 A118-3 Shim 9.50 A118-4 Shim 9.50 A118-5 Shim 9.50 A118-6 Shim 9.50 A119-1 Bumper 10.50 A120-1 Bellcrank Assy. 339.00 A121-1 P/P Tube Assy. 549.00 A121-3 P/P Tube Assy. 400.00 A121-5 P/P Tube Assy. 477.00 A121-7 P/P Tube Assy. 565.00 A121-9 P/P Tube Assy. 495.00 A121-11 P/P Tube Assy. 501.00 A121-13 P/P Tube Assy. 406.00 A121-15 P/P Tube Assy. 464.00 A121-17*** P/P Tube Assy. 640.00 A127-3 Rod End, Male 48.50 A127-4 Rod End, Male 57.00 A130-1 Spacer 13.50 A130-3 Spacer 16.00 * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 7 A130-4 Spacer 10.00 A130-6 Spacer 13.50 A130-8 Spacer 10.75 A130-10 Spacer 20.00 A130-12 Spacer 22.50 A130-13 Spacer 9.00 A130-14 Spacer 9.25 A130-15 Spacer 11.50 A130-16 Spacer 11.25 A130-18 Spacer 11.75 A130-19 Spacer 14.25 A130-20 Spacer 10.25 A130-21 Spacer 10.25 A130-23 Spacer 9.75 A130-25 Spacer 10.75 A130-26 Spacer 10.00 A130-28 Spacer 13.00 A130-31 Spacer 10.75 A130-33 Spacer 11.00 A130-34 Spacer 10.25 A130-35 Spacer 10.50 A130-36 Spacer 7.75 A130-37 Spacer 11.50 A130-39 Spacer 14.25 A130-40 Spacer 12.00 A130-41 Spacer 9.75 A130-42 Spacer 10.75 A130-43 Spacer 12.75 A130-44 Spacer 10.25 A130-45 Spacer 10.75 A130-46 Spacer 9.25 A130-47 Spacer 10.50 A130-48 Spacer 11.00 A130-49 Spacer 10.25 A130-51 Spacer 8.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 8 Effective January 15, 2008 A130-52 Spacer 8.25 A130-53 Spacer 6.00 A130-54 Spacer 10.50 A130-55 Spacer 8.00 A134-1 Balance Weight (0.032 in. Thick) 9.25 A137-1 Spacer 13.50 A137-2 Spacer 13.50 A138-1 Bushing 17.00 A139-1 Journal, Bearing 1.60 A140-1 Stiffener 46.25 A141-3 Washer .40 A141-7 Washer .40 A141-8 Washer .25 A141-9 Washer 20.75 A141-10 Washer 16.50 A141-11 Washer 4.75 A141-12 Washer 11.75 A141-14 Washer 6.25 A141-15 Washer 6.00 A141-16 Washer .40 A141-17 Washer 6.25 A141-18 Washer .95 A141-20 Washer 7.00 A141-21 Washer 5.75 A141-23 Washer 5.00 A141-24 Washer 6.25 A141-25 Washer 6.25 A141-26 Washer 4.75 A141-27 Washer 10.75 A141-28 Washer 7.00 A141-29 Washer 6.25 A141-30 Washer 6.25 A141-32 Washer .55 A141-35 Washer 4.25 A141-38 Washer 6.25 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 9 A141-43 Washer 2.50 A142-1 Screw 1.70 A142-2 Screw 6.75 A142-4 Screw 1.15 A143-1 Sleeve (See A143-4) A143-4 Sleeve, Short 10.00 A147-1 Spacer 145.00 A150-1 Droop Stop, MR 32.00 A152-1 Washer 94.50 A156-1 Boot 14.50 A162-1 Spar Cover 16.00 A165-1 Clamp Assy. 35.50 A165-2 Clamp Assy. 34.50 A168-3 Retainer 119.00 A169-3 Shroud 281.00 A169-6 Muffler, with Risers 2,003.00 A169-8 Muffler, without Risers 916.00 A169-14 Bead Clamp 13.50 A169-23 Riser Assy. 90.00 A169-24 Muffler, with Risers 2,025.00 A169-25 Muffler, without Risers 954.00 A173-2 Cover 15.50 A175-1 Bellcrank 27.25 A184-3 Bearing Assy., Upper 814.00 A185-1 Bracket, Lower 39.00 A185-2 Bracket, RH, without Nutplate 39.25 A185-3 Plate, Upper 8.25 A185-5 Bracket, LH, without Nutplate 38.25 A189-10 Nut 13.00 A190-2 V-Belt Set 416.00 A191-1 Block 41.75 A195-1 Yoke 542.00 A200-2 Retainer 15.75 A202-2 Sleeve Assy. 167.00 A203-7 Yoke Half Assy. (See A203-8) * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 10 Effective January 15, 2008 A203-8 Yoke Half Assy. (2 Required) 403.00 A204-1 Arm Scissor, Swashplate 74.00 A205-1 Fork Assy., Scissor 182.00 A205-3 Fork Assy. 316.00 A205-9 Fork Assy. 332.00 A207-3 Block 34.50 A207-4 Block 34.50 A209-1 Spacer 21.75 A209-2 Spacer 21.75 A209-3 Spacer 21.75 A209-4 Spacer 21.75 A209-5 Spacer 21.75 A209-6 Spacer 21.75 A209-7 Spacer 21.75 A209-8 Spacer 21.75 A209-9 Spacer 21.75 A209-10 Spacer 21.75 A209-11 Spacer 21.75 A209-12 Spacer 21.75 A209-13 Spacer 21.75 A209-14 Spacer 21.75 A209-15 Spacer 21.75 A209-16 Spacer 21.75 A209-17 Spacer 21.75 A209-18 Spacer 21.75 A209-19 Spacer 21.75 A209-20 Spacer 21.75 A209-21 Spacer 21.75 A209-22 Spacer 21.75 A210-1 Key 20.75 A212-1 Strap, Engine Ground 22.50 A214-1 Washer .55 A214-2 Washer 1.00 A214-3 Washer 2.30 A214-4 Washer 4.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 11 A214-5 Washer 3.75 A214-6 Washer .30 A214-9 Bearing Thrust Washer 4.50 A214-10 Thrust Washer 6.00 A214-12 Washer .85 A215-006 O-Ring .20 A215-013 O-Ring .30 A215-017 O-Ring .25 A215-020 O-Ring .25 A215-024 O-Ring .35 A215-035 O-Ring .75 A215-116 O-Ring .30 A215-123 O-Ring .35 A215-125 O-Ring .35 A215-137 O-Ring 1.05 A215-152 O-Ring 1.45 A215-157 O-Ring 2.50 A215-204 O-Ring .30 A215-271 O-Ring 6.50 A215-373 O-Ring 8.75 A216-1 Housing 25.50 A218-1 Shield 18.75 A226-2 Seal, Door (Requires 11 ft. per door) 1.45/ft A226-3 Seal, Vent Door (Requires 3 ft. per door) 1.00/ft A226-4 Seal 2.65/ft A226-6 Seal 1.40/ft A226-7 Seal 1.35/ft A226-8 Seal 3.00/ft A226-9 Molding 3.20/ft A227-1 Hinge Assy., LH, Upper 34.50 A227-2 Hinge Assy., RH, Upper 34.50 A227-3 Hinge Assy., LH, Lower 34.50 A227-4 Hinge Assy., RH, Lower 34.50 A228-1 Hinge Assy. 47.50 A228-2 Hinge Assy. 47.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 12 Effective January 15, 2008 A230-2 Bushing 14.50 A231-1 Plug Assy. 10.75 A231-4 Anchor 4.75 A231-9 Plug Assy. 22.75 A232-1 Panel, Floor, LH 230.00 A232-2 Panel, Floor, RH 230.00 A232-3 Panel, Center 103.00 A233-3 Tunnel, Vertical Firewall 174.00 A234-2 Firewall, Horizontal, RH 114.00 A234-3 Firewall, Horizontal, LH 88.75 A238-2 Brace Assy. 296.00 A238-3 Jamb, LH 206.00 A238-4 Jamb, RH 206.00 A238-5 Jamb, Upper, LH 130.00 A238-6 Jamb, Upper, RH 112.00 A238-7 Jamb, Rear, LH 153.00 A238-8 Jamb, Rear, RH 153.00 A238-9 Sill, LH 128.00 A238-10 Sill, RH 128.00 A238-11 Frame, LH 168.00 A238-12 Frame, RH 168.00 A238-13 Frame, LH 161.00 A238-14 Frame, RH 161.00 A238-15 Support 147.00 A238-16 Retainer 43.00 A238-17 Retainer 56.00 A238-18 Retainer 55.00 A238-22 Retainer 44.50 A238-23 Retainer 36.50 A238-32 Spacer (See B410-6) A238-33 Spacer (See B410-6) A238-34 Spacer 28.25 A241-2 Cross Tube, with Rain Caps 345.00 A244-1 Bracket 50.25 A246-1 Liner Assy., Skid Tube 117.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 13 A246-3 Spacer 12.75 A247-1 Rain Cap 8.75 A247-3 Rain Cap 8.75 A255-1 Counter Weight 35.25 A255-2 Counter Weight 42.50 A257-1 Moly Grease (14.4 oz. tube) 13.00 A257-2 Gear Oil(Gallon) 65.25 A257-2LT Gear Oil (Liter/Quart) 18.00 A257-3 Grease Cartridge (14 oz.) 8.50 A257-4 Oil, Type "A" A.T.F. (Quart) 4.25 A257-5 Grease Cartridge (14 oz.) 6.00 A257-8 Rubber Lube (Pint) 9.00 A257-9 Anti-Seize (16 oz. can) 40.25 A257-10 Spark Plug Lube (4 oz.) 13.25 A257-16 Engine Oil (Quart) 5.50 A257-17 Elec. Insulating Lube (See A257-19) A257-19 Valve Lube & Sealant (5.3 oz. tube) 16.25 A257-19.25OZ Valve Lube & Sealant (.25 oz.) 8.75 A258-1 Pitch Link Assy. 447.00 A258-2 Fitting 166.00 A258-4 Pitch LinkSub-Assy. 239.00 A261-1 Mast Fairing Assy. 860.00 A261-2 Skin 163.00 A261-3 Rib, LH 133.00 A261-4 Rib, RH 133.00 A261-5 Rib, LH 133.00 A261-6 Rib, RH 133.00 A261-7 Angle 11.75 A262-1 Fitting 64.00 A266-1 Spacer 121.00 A266-2 Spacer 97.25 A267-1 Washer 38.00 A269-1 Washer 8.50 A270-1 End Cover 97.25 A272-1 Chin 321.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 14 Effective January 15, 2008 A273-1 Roof 347.00 A273-3 Window, Cabin Top 104.00 A274-1* Windshield, LH, Clear 897.00 A274-2* Windshield, RH, Clear 897.00 A274-3* Windshield, LH, Tinted 960.00 A274-4* Windshield, RH, Tinted 960.00 A275-1 Frame 164.00 A278-1 Spacer 25.00 A284-1 Bracket 26.25 A286-1 Doubler, LH & RH 30.00 A286-2 Doubler, LH & RH 23.00 A287-1 Panel, LH 47.00 A287-2 Panel, RH 47.00 A288-1 Cross Beam, Seat Support, LH 36.75 A288-2 Cross Beam, Seat Support, RH 36.75 A290-1 Drain Valve 43.75 A291-1 Seat Support Assy., LH 417.00 A291-2 Seat Support Assy., RH 386.00 A298-2 Balance Strip 9.25 A298-3 Balance Strip 8.50 A300-2 Tip Cover, MR Blade 38.75 A304-1 Cap, LH 13.00 A304-2 Cap, RH 92.50 A304-4 Cap, RH 33.00 A305-5 Panel Assy., LH (Also order A305-7 & -8) 219.00 A305-6 Panel Assy., RH (Also order A305-7 & -8) 268.00 A305-7 Panel Assy., Small 29.25 A305-8 Panel, Large 16.50 A306-1 Panel, Upper, RH 113.00 A306-2 Panel, Lower, RH 31.25 A308-1 Cover Assy., RH 310.00 A308-6 Cover Assy. 317.00 A309-1 Panel Assy., RH 514.00 A309-15 Panel Assy., RH 514.00 A310-1 Panel, Upper, LH 127.00 * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 15 A310-2 Panel, Lower, LH 29.75 A311-1 Bracket 16.25 A312-1 Cover Assy., LH 296.00 A312-6 Cover Assy. 296.00 A313-1 Panel Assy., LH 323.00 A313-7 Panel Assy., LH 345.00 A315-1 Support Assy. 165.00 A316-1 Bellcrank 293.00 A317-1 Bellcrank 161.00 A318-1-2 Bearing Block Set 115.00 A319-3 Torque Tube Assy. 375.00 A320-1 Stick Assy., Cyclic 530.00 A325-1 Arm 30.25 A327-1 Overtravel SpringAssy. 536.00 A329-1 Bearing Block Assy. 114.00 A331-1 Bellcrank Assy. 144.00 A332-1 Lever (See A332-2) A332-2 Lever 60.25 A333-1 Stop, Collective 36.50 A335-1 Torque Tube 24.75 A336-1 P/P Tube 87.25 A336-2 P/P Tube 87.25 A337-1 Jackshaft Assy. 710.00 A339-1 Spacer 15.75 A340-1 Spacer 18.00 A341-1 Spacer 18.00 A343-1 Strut 43.25 A344-1 Strut 56.75 A347-5 Strut Assy. 197.00 A348-1 Anchor Assy. 343.00 A350-1 Panel, LH 85.75 A350-4 Panel, RH 85.75 A355-1 Fillet, Lower, LH & RH 68.50 A355-3 Fillet, Upper, LH & RH 68.50 A356-2 Hinge 17.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 16 Effective January 15, 2008 A359-1 Support, LH 19.75 A359-2 Support, RH 19.75 A365-11 Channel 15.75 A366-1 Stop 35.50 A366-2 Stop 35.50 A371-1 Stiffener, LH 24.75 A371-2 Stiffener, RH 24.75 A373-3 Angle, LH 17.00 A373-4 Angle, RH 17.00 A378-3 Panel, LH 50.25 A378-4 Panel, RH 50.25 A378-5 Panel, LH 42.00 A378-7 Stiffener, LH 54.25 A378-8 Stiffener, RH 54.25 A378-11 Stiffener, LH & RH 26.50 A378-14 Panel, RH 41.00 A378-15 Clip Assy. 27.00 A378-17 Panel, Fwd, RH 59.75 A379-2 Receptacle Assy. 51.25 A379-5 Angle 16.75 A379-6 Angle 17.25 A379-8 Receptacle Assy. 62.75 A391-1 Doubler 17.25 A394-1 Stiffener 19.00 A395-1 Scupper 13.00 A397-1 Clip 15.25 A397-2 Plate 13.00 A401-2 Cover 17.25 A402-1 Angle 10.00 A406-2 Beam (See A406-9) A406-3 Angle, LH 15.25 A406-4 Angle, RH 15.25 A406-9 Beam 13.50 A407-1 Floor Beam Assy. 129.00 A407-2 Beam (See A407-1) * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 17 A407-3 Angle, LH 18.75 A407-4 Angle, RH 18.75 A407-5 Angle, Center 10.00 A408-1 Beam 24.00 A408-2 Beam 24.00 A409-1 Angle 10.00 A409-2 Angle 11.00 A410-1 Channel, LH 23.00 A410-2 Channel, RH 23.00 A411-1 Splice 8.50 A412-1 Cover 11.75 A414-1 Angle, LH 17.50 A414-2 Angle, RH 13.75 A414-3 Angle, LH & RH 11.75 A415-1 Doubler 16.00 A417-1 Doubler 10.75 A417-2 Doubler 10.75 A419-1 Strip 19.75 A419-2 Strip 17.25 A419-3 Strip 23.00 A420-1 Spacer 11.00 A420-2 Spacer 11.25 A422-1 Angle, LH & RH 10.00 A425-3 Vent Door, LH 49.00 A425-4 Vent Door, RH 49.00 A425-5 Angle, LH 17.25 A425-6 Angle, RH 17.25 A425-7 Arm 4.00 A425-8 Hinge 13.50 A425-9 Clip, Lower 18.75 A425-10 Clip, Upper 18.75 A425-13 Angle 22.00 A425-15 Arm Assy., LH (See A425-20) A425-16 Arm Assy., RH (See A425-21) A425-20 Arm Assy., LH 197.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 18 Effective January 15, 2008 A425-21 Arm Assy., RH 197.00 A426-5 Cap 73.25 A426-6 Cap 88.75 A428-1 Rod 19.75 A429-1 Spring, Collective 99.50 A429-2 Spring, Collective 59.75 A429-3 Spring, Collective 54.25 A429-4 Spring, Collective 36.75 A429-5 Spring, Collective 31.75 A429-8 Spring, Collective 82.25 A429-10 Spring, Collective 46.00 A430-2 Tube, Short 27.25 A431-1 Knob 2.75 A432-1 Guide Assy., P/P Tube 157.00 A437-2 Tab 13.00 A444-1 Cover Assy. 109.00 A444-7 Cover Assy. 74.50 A444-9 Cover Assy. 75.25 A444-11 Cover Assy. 78.50 A444-13 Cover Assy. 74.75 A445-2 Cover 43.00 A448-1 Bus Bar 20.00 A448-3 Bus Bar 10.50 A448-4 Bus Bar 12.50 A448-5 Bus Bar 21.50 A448-6 Bus Bar 22.50 A448-8 Bus Bar 19.25 A448-9 Bus Bar 17.00 A448-10 Bus Bar 11.25 A448-14 Bus Bar 23.50 A449-1 Cover Assy.,Outboard 63.50 A453-1 Plate 3.70 A454-1 Support 20.50 A455-1 Plug 32.25 A456-1 Drain 41.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 19 A457-1 Tee 2.65 A458-1 Drain 95.00 A462-1 Fitting 13.00 A462-4 Fitting 13.00 A465-4 Panel Assy. 53.00 A469-1* Carpet Assy., Fwd, LH 133.00 A469-2* Carpet Assy., Fwd, RH 136.00 A469-3* Carpet Assy., Aft, LH 91.00 A469-4* Carpet Assy., Aft, RH 86.00 A469-8 Carpet, Aft, RH (See A469-4) A469-9 Scuff Plate Assy., LH 24.75 A469-10 Scuff Plate Assy., RH 23.50 A469-11* Carpet, LH 41.50 A469-12* Carpet, RH 41.50 A469-13* Carpet, LH 21.25 A469-14* Carpet, RH 21.25 A469-18* Carpet, LH (S/N 0333 & on) 77.75 A469-23* Carpet, RH, with Heater 176.00 A469-24 Scuff Plate Assy., RH, with Heater 29.25 A469-27* Carpet, RH, with Fwd Heater 92.00 A469-29* Carpet Assy., Fwd, LH 151.00 A469-31* Carpet Assy., Fwd, LH 99.00 A469-32* Carpet Assy., Fwd, RH 99.00 A469-33* Carpet Assy., Fwd, LH, with Heater 114.00 A469-34* Carpet Assy., Fwd, RH, with Heater 108.00 A470-1 Skid Tube 107.00 A473-1 Guard 34.50 A474-1 Trim 21.75 A475-2 Cover 29.50 A475-3 Retainer 18.75 A475-4 Spacer 18.75 A475-5 Retainer 8.75 A478-1 Spring Washer 5.00 A479-1 Plate Assy. 25.25 A479-2 Ring 7.75 * Prices are subject to change without notice. Normal discount does not apply. * Please specify color. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 20 Effective January 15, 2008 A480-1 Boot, Swashplate 30.25 A481-2 Bracket, Upper 36.25 A482-1 Switch Assy. 68.25 A483-1 Knob 24.00 A484-3 Plate 4.50 A485-2 Mount, Limit Switch 20.25 A486-1 Screw 16.00 A486-2 Screw 8.75 A487-1 Retainer, Straight 4.50 A487-2 Retainer, Bent 8.50 A490-2 Panel 31.00 A490-3 Panel 31.00 A490-4 Panel 31.00 A493-1 Sheave, Lower 2,415.00 A494-1 Shaft 58.25 A496-2 Plate 18.50 A496-3 Plate 17.50 A497-1 Washer 26.50 A498-1 Rod End 58.50 A499-2 Knob, Cyclic Friction 34.00 A510-1 Scissor 29.50 A516-1 Hinge, Air Box 12.75 A518-1 Cover Assy. 21.00 A518-2 Cover Assy. 19.00 A519-1 Shield 70.00 A521-1 Switch Assy. 211.00 A522-1 Control Cable, Vent Air 37.75 A522-2 Control Cable, Carb. Heat 31.75 A522-3 Control Cable, Mixture (See A522-12) A522-4 Control Cable, Cabin Heat 38.75 A522-12 Control Cable, Mixture 79.25 A525-1 Support, Landing Light 165.00 A526-1 Retainer, Landing Light 222.00 A528-1 Mount (See C528-1) A529-1 Mount Assy., Tail Light 135.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 21 A537-5 Block, LH 13.75 A537-6 Block, RH 11.50 A540-12 Box Assy., Fwd Battery 363.00 A550-1 Sender, Fuel Level 317.00 A552-1 Catch, Door Handle (S/N 0001-0229) 28.25 A553-1 Block 61.25 A553-2 Block 61.25 A554-1 Clip 19.00 A555-1 Plate 10.75 A556-1 Door Lock, Set 33.75 A557-1 Angle Assy. 75.75 A557-2 Angle Assy. 74.50 A557-3 Angle Assy. 67.75 A558-1 Cover, Tailcone, Transparent 11.75 A559-1 Spacer 18.00 A562-1 Slider Valve 17.00 A568-1 Scoop Assy., Large 127.00 A568-2 Scoop Assy., Small 111.00 A568-3 Angle 20.75 A568-4 Angle 20.75 A568-5 Sheet 28.00 A568-9 Angle 20.00 A569-5 Warning Unit Assy., Low RPM 572.00 A570-1 Low Voltage Indicator 268.00 A571-1 Fitting Assy. 43.50 A572-3 Warning Light Assy. 43.25 A575-1 Stringer 38.75 A576-1 Doubler 15.25 A579-1 Inlet 64.25 A580-1 Guard 35.50 A580-2 Guard 45.75 A581-1 Arm 89.00 A582-1 Plate 12.25 A583-1 Cap 36.75 A583-2 Cap 45.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 22 Effective January 15, 2008 A584-1 Support 35.50 A585-2 Shaft 102.00 A586-2 Fork 44.25 A587-2 Stem 30.00 A587-3 Stem 39.00 A588-1 Spacer 15.25 A590-1 Cover Plate, DME 47.50 A594-1 Tab 7.50 A595-1 Seal 36.50 A595-2 Seal 36.50 A596-1 Elbow Fitting(Includes nut) 8.00 A597-1 Cover 9.50 A599-1 Airspeed Indicator 618.00 A600-1 Manifold Pressure Gauge 502.00 A600-2 Manifold Pressure Gauge 502.00 A600-3 Manifold Pressure Gauge 502.00 A600-5 Manifold Pressure Gauge 502.00 A601-1 Grip 3.00 A601-2 Grip 4.75 A601-5 Grip 1.00 A602-1 Rate Of Climb Indicator 410.00 A602-2 Rate of Climb Indicator, IVSI 1,540.00 A603-1 Cover Assy. 85.75 A603-2 Cover 52.25 A603-5 Decal, "Weight of Gyro..." 5.75 A603-6 Decal, "Weight of DME..." 8.25 A604-2 Carb. Air Temperature Gauge 556.00 A606-1 Cover 132.00 A607-1 Support 33.25 A610-1 Filler Vent Plug 107.00 A613-1 Altimeter, in. Hg 762.00 A613-2 Altimeter, Mil. 762.00 A615-1 Gasket, Carb. Air Box 13.50 A618-1 Spring, Cyclic 11.00 A618-2 Spring, Cyclic 16.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 23 A623-1 Inlet 56.00 A623-2 Outlet 228.00 A625-1 Box 65.25 A627-1 Inlet 94.00 A628-4 Connector Assy., Harness 354.00 A628-5 Buckle Assy. 92.00 A629-1 Spacer 39.00 A630-1 Cover 50.25 A631-1 Cover 60.50 A636-1 Support 34.50 A636-2 Support 47.50 A640-1 Screen 21.25 A640-2 Screen 25.75 A641-7 Face 112.00 A641-8 Face 112.00 A641-9 Face 112.00 A641-10 Face 112.00 A641-11 Face 112.00 A643-2 Blower Assy. 1,794.00 A644-2 Support 55.50 A645-1 Clip 14.25 A647-2 Ball Bearing 38.00 A648-1 Bearing 142.00 A648-3 Bearing 137.00 A649-1 Oil Cooler (See C649-1) A649-2 Oil Cooler (See C649-1) A650-1 Fitting, MRGB Mount (See A650-3) A650-3 Fitting, MRGB Mount 230.00 A653-1 Mount 21.00 A654-1 Decal, "Fuel 80/87 Min..." 4.50 A654-2 Decal, "Caution Do Not Exceed..." 1.55 A654-3 Decal, "Danger" Arrow, TR 2.65 A654-4 Decal, "Weight of Battery..." 4.15 A654-6 Decal, "Throttle Open" .85 A654-7 Decal, "Friction Increase" Coll. 1.10 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 24 Effective January 15, 2008 A654-8 Decal, "Latch" Door .75 A654-9 Decal, "Open" Inside LH Door 1.15 A654-10 Decal, "Open" Inside RH Door 1.15 A654-11 Decal, "Open" Outside RH Door 1.15 A654-12 Decal, "Open" Outside LH Door 1.15 A654-13 Decal, "Off" Fuel, Heater, Spotlight 1.00 A654-14 Decal, "DME" 1.85 A654-15 Decal, "On" Fuel, Heater, Spotlight 1.05 A654-16 Decal, "Headset" .75 A654-18 Decal, "Level Here" 1.40 A654-19 Decal, "No Step" .90 A654-21 Decal, "No Stowage Keep Area Clear" .85 A654-23 Decal, "Fill To Center Of Sight..." 1.25 A654-24 Decal, "Danger Hot Exhaust" 1.95 A654-25 Decal, "Never Pull Down Push Up..." .80 A654-30 Decal, "Step Here" 1.15 A654-37 Decal, "R22 Robinson Helicopter..." 1.50 A654-38 Decal, "Push To Open" .80 A654-40 Decal, "Fuel 91/96 Min. Grade..." 2.45 A654-41 Decal, MAP Limits, R22 HP & Alpha 1.00 A654-43 Decal, "Solo From Right Seat Only" 2.00 A654-44 Decal, "Tip Weights Installed" .85 A654-45 Decal, "Mixture Control Guard..." 1.40 A654-50 Decal, "L" Removable Left Pedal .65 A654-51 Decal, "R" Removable Right Pedal 1.05 A654-52 Decal, "Release Brake Before Start" .90 A654-53 Decal, "Brake" .85 A654-55 Decal, "Caution: For Tiedown Only..." 6.00 A654-56 Decal, "Fill As Shown With A257-2..." 2.00 A654-57 Decal, "Aux Fuel 91/96 Min. Grade..." 3.35 A654-61 Decal, "Without Floats Installed..." 16.25 A654-63 Decal, "Rt. Trim Adj. Increase" 1.20 A654-64 Decal, MAP Limits, R22 Beta 3.75 A654-65 Decal, MAP Limits, R22 Mariner 13.75 A654-66 Decal, "Caution Below 18" MP..." 2.90 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 25 A654-69 Decal, "Altitude Encoder Installed" 1.25 A654-70 Decal, "Gov" 1.00 A654-75 Decal, "Fuel 80/87 Min. Grade..." 4.50 A654-76 Decal, "Fuel 91/96 Min. Grade..." 3.50 A654-77 Decal, "Aux Fuel 91/96 Min. Grade..." 4.50 A654-79 Decal, "Gov Off/On" 1.20 A654-80 Decal, "Danger" Stabilizer 2.25 A654-81 Decal, "Warning: Grip Firmly..." 1.00 A654-83 Decal, "Low-G Pushovers Prohibited" .80 A654-85 Decal, "Danger Tail Rotor" 1.45 A654-86 Decal, "Transmit" 1.40 A654-87 Decal, "Com 1" 1.10 A654-88 Decal, "Com 2" .90 A654-89 Decal, "Gov Off" .70 A654-90 Decal, MAP Limits 5.00 A654-91 Decal, MAP Limits 19.25 A654-93 Decal, "Caution Hold Tube..." 3.50 A655-1 Time Delay 174.00 A656-1 Sleeve 31.25 A657-1 Nut 36.75 A661-1 Ignition Switch 221.00 A662-2 Bracket 25.25 A662-3 Bracket 25.25 A662-4 Bracket 25.25 A663-1 Plate 36.25 A663-2 Plate 34.75 A665-1 Restraint Assy. 54.50 A665-3 Scupper 28.00 A666-1 Gascolator 186.00 A667-5 Skid Shoe, Straight 76.00 A667-6 Skid Shoe, Curved 76.00 A668-1 Doubler 12.00 A670-1 Valve, Fuel Shut-Off 640.00 A670-2 Handle 96.75 A676-1 Cover 13.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 26 Effective January 15, 2008 A677-4 Boot, Cyclic Stick 45.50 A678-1 Boot Assy., Collective 17.50 A680-1 Ring 13.00 A680-2 Ring 11.75 A682-1 Barrier 18.25 A684-1 Strap 6.75 A685-1 Mount 40.25 A687-1 P.A./Siren Control Panel 1,390.00 A687-3 P.A./Siren Control Panel 1,433.00 A688-1 Switch 43.25 A689-6 Fuel Cap 19.25 A689-7 Gasket, Fuel Cap 6.00 A690-1 Vent 6.25 A691-1 Tube 8.50 A693-1 Cushion, Foam 12.00 A693-2BLL Cushion, Blue Leather 240.00 A693-2BLV Cushion, Blue Velour 120.00 A693-2BRL Cushion, Brown Leather 240.00 A693-2BRV Cushion, Brown Velour 120.00 A693-2GRL Cushion, Gray Leather 240.00 A693-2GRV Cushion, Gray Velour 120.00 A693-2TNL Cushion, Tan Leather 240.00 A693-2TNV Cushion, Tan Velour 120.00** A694-1 Clamp 25.25 A695-1 Clamp 25.25 A695-3 Clamp 31.25 A697-2 Plate 18.00 A697-6 Tab 26.50 A698-1 Tail Position Light Assy. 240.00 A700-1 Barrier 7.25 A701-1 Foil Tape (180 ft. per roll) 58.50/rl A701-1.5FT Foil Tape (5 ft. per roll) 6.75/rl A701-3 Polyethylene Tape (108 ft. per roll) 60.75/rl A701-4 Vinyl Tape (108 ft. per roll) 21.00/rl A701-10 Cres Tape (50 ft. per roll) 56.50/rl * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 27 A702-1 Shield 30.75 A706-1 Fairing 31.75 A707-1 Angle, LH 96.50 A707-2 Angle, RH 93.75 A707-3 Angle 54.75 A708-1 Power Supply, Strobe 340.00 A708-2 Strobe Light, Red 155.00 A708-3A Harness Assy., Strobe Light 43.75 A708-5 Adapter 19.75 A708-7 Lens, Red 64.75 A708-11 Strobe Light Assy., Red/White 184.00 A709-1 Cover 19.00 A710-1 Angle, Cooling System, RH 25.00 A712-1 Cover 148.00 A713-1 Strap 34.50 A717-8 Shaft Assy. (Order new style A063-1) A717-9 Shaft Assy. 295.00 A718-2 Lever Assy. 44.75 A719-1 Support Assy. 113.00 A720-5 Wheel & Tire Assy. 56.00 A723-2 Oil Line Assy. (Contact Technical Support) A723-5 Oil Line Assy., Out 138.00 A723-6 Oil Line Assy., Return 147.00 A724-1 Name Plate 55.50 A724-2 Name Plate 55.50 A725-1 Mount 15.25 A725-2 Mount 15.25 A726-1 Fuel Line Assy., Lower 69.25 A726-2 Fuel Line Assy., Upper 70.00 A727-1 Tube 39.25 A728-1 Stiffener 19.75 A729-1 Tube 13.00 A729-2 Tube 13.00 A729-3 Tube 16.25 A729-5 Tube 14.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 28 Effective January 15, 2008 A729-6 Tube 21.00 A729-7 Tube 10.25 A729-17 Tube 10.75 A729-21 Tube 10.75 A729-22 Tube 13.25 A729-23 Tube 8.50 A729-24 Tube 12.50 A729-25 Tube 9.50 A729-26 Tube 9.25 A729-27 Tube 9.25 A729-28 Tube 14.25 A729-30 Tube 9.25 A729-31 Tube 11.75 A729-37 Tube 16.75 A730-1 Cover 13.50 A730-2 Cover 13.50 A730-3 Cover 13.50 A730-5 Cover 13.50 A731-3 Vent Line, Fuel System 32.50 A736-1 Support 13.50 A738-3 Gang Channel 21.00 A738-4 Gang Channel 48.50 A738-5 Gang Channel 48.50 A738-6 Gang Channel 35.50 A738-7 Gang Channel 24.50 A738-8 Gang Channel 17.00 A738-21 Gang Channel 34.75 A738-27 Gang Channel 16.75 A740-1 Line Assy., Manifold Pressure 58.25 A743-1 Plate, Call Letters 16.75 A745-1 Strap 19.00 A746-1 Plate 22.75 A746-2 Plate 22.75 A747-1 Nozzle Assy. 242.00 A748-1 Cover Assy. 87.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 29 A748-3 Angle 8.75 A748-4 Cover Assy. 94.00 A750-1 Cover (Without heater) 17.25 A750-2 Cover (With heater) 32.50 A750-3 Cover (Without heater) 17.25 A750-4 Cover (With heater) 32.50 A751-2 Strip 4.75 A752-1 Angle, Headset Hanger 29.50 A752-2 Angle, Headset Hanger 32.50 A753-1 Cover 49.25 A755-1 Pedal Assy., Removable (Includes A755-3) 849.00 A755-2 Pedal Assy., Removable (Includes A755-4) 849.00 A755-3 Pedal Assy., Rem. (If purchased separately) 366.00 A755-4 Pedal Assy., Rem. (If purchased separately) 366.00 A756-2 Cyclic Grip, Plain, LH 431.00 A758-2 Stick Assy. (See A758-5) A758-5 Stick Assy., LH, Removable 464.00 A758-6 Stick Assy., RH, with Governor 4,051.00 A758-6A Stick Assy., RH, without A038 3,398.00 A758-7 Stick Sub-Assy., RH 1,944.00 A759-1 Rod End 56.25 A759-2 Rod End 37.25 A760-1 Oil Temperature Sender 103.00 A761-1 Drain Valve Assy., Fuel Tank 25.00 A763-1 Adapter 28.00 A767-1 Rub Strip, Door 8.25 A768-1 Clip, Door, LH 21.25 A768-2 Clip, Door, RH 21.25 A769-1 Interrupter, Magnetic Pickup 13.50 A769-2 Interrupter, Optional 32.25 A769-3 Interrupter, Flat 25.00 A771-1 Air Filter 10.75 A775-1 Cover Assy. 62.50 A776-1 Mount 7.25 A777-1 Face 87.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 30 Effective January 15, 2008 A779-1 Gasket 17.25 A780-1 Cable Assy. 26.50 A780-2 Cable Assy. 22.25 A780-7 Cable Assy. 49.25 A781-1 Connector Plug 9.00 A782-4 Housing Assy. 211.00 A785-1 Hose 96.25 A785-2 Hose 52.25 A785-3 Hose 93.75 A785-4 Hose 97.50 A785-5 Hose 102.00 A785-6 Hose 48.50 A785-7 Hose 36.75 A785-8 Hose 128.00 A785-9 Hose 229.00 A785-20 Hose 78.00 A785-21 Hose 111.00 A785-25 Hose 73.50 A785-26 Hose 21.25 A785-27 Hose 62.75 A785-32 Hose 34.00 A785-34 Hose 68.00 A786-1 Washer (See NAS620-10L) A787-1 Angle 18.50 A788-1 Stiffener 13.25 A788-2 Stiffener 13.25 A792-2 Dual Tachometer Assy. (See A792-4) A792-4 Dual Tachometer Assy. 2,751.00 A793-1 Stop 16.50 A794-2 Panel, Belly 28.25 A795-4 Pin 3.00 A795-7 Pin Assy. 6.25 A796-1 Shim, MRGB 8.25 A796-2 Shim, MRGB 11.25 A797-1 Cover, Round 13.25 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 31 A798-1 Plate 26.25 A798-3 Plate 34.50 A830-3 Doubler 16.00 A837-4 Bracket, Fwd 58.00 A837-5 Bracket, Aft 57.50 A837-6 Switch Assy. 244.00 A901-1 Cover 4.25 A903-1 Inlet 102.00 A904-1 Doubler 22.00 A905-3 Angle 8.75 A907-4 Yoke, Short 459.00 A907-5 Yoke, Long 459.00 A908-4 Yoke Assy. 746.00 A910-1 Tube 6.50 A910-2 Tube 6.50 A911-1 Scoop Inlet, Cabin Heater 71.50 A912-1 Pocket, RH 5.50 A912-4 Pocket, LH 5.50 A913-1 Strip 9.50 A913-2 Strip 9.00 A914-1 Insulation (See A914-1BL,BR,GY,TN) A914-1BL Insulation, 1/2 in. Thick, Blue 49.25 A914-1BR Insulation, 1/2 in. Thick, Brown 49.25 A914-1GY Insulation, 1/2 in. Thick, Gray 49.25 A914-1TN Insulation, 1/2 in. Thick, Tan 49.25 A915-2 Spacer Block 22.50 A918-1 Elastic Cord Assy. 36.75 A918-2 Elastic Cord Assy. 36.75 A918-3 Elastic Cord Assy. 36.75 A918-4 Elastic Cord Assy. 36.75 A918-5 Elastic Cord Assy. 36.75 A918-6 Elastic Cord Assy. 36.75 A918-7 Elastic Cord Assy. 36.75 A918-8 Elastic Cord Assy. 36.75 A918-9 Elastic Cord Assy. 36.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 32 Effective January 15, 2008 A918-10 Elastic Cord Assy. 36.75 A918-11 Elastic Cord Assy. 36.75 A918-12 Elastic Cord Assy. 36.75 A918-13 Elastic Cord Assy. 36.75 A922-2 Channel 38.75 A923-2 Rod 44.50 A928-1* Seat Assy., Bottom, Velour 594.00 A928-1LTR* Seat Assy., Bottom, Leather 799.00 A928-5 Hinge 35.25 A929-2 Bracket 37.50 A930-1 Spring 7.75 A933-3 Rod End 40.25 A936-1 Wire Assy. 19.75 A936-2 Wire Assy. 17.00 A937-1 Extension Assy., Skid Tube, LH 392.00 A937-2 Extension Assy., Skid Tube, RH 392.00 A938-2 Mount 27.75 A941-2 Plate 23.00 A941-3 Plate 24.50 A942-1 Alternator Control Unit 381.00 A942-2 Alternator Control Unit 381.00 A942-3 Alternator Control Unit, 14V 381.00 A944-1 Strip 40.00 A944-2 Strip 34.50 A944-3 Strip 36.50 A944-4 Strip 40.00 A945-1 Extension Assy.,LH 789.00 A945-2 Extension Assy.,RH 789.00 A947-1 Flex Plate Assy. 590.00 A947-2 Flex Plate Assy. 494.00 A947-3 Flex Plate Assy. 517.00 A949-1 Float Tube, LH (See B900-6) A949-2 Float Tube, RH (See B900-6) A950-1 Guard Assy., Mixture Control 4.50 A954-1 Shield 27.25 * Prices are subject to change without notice. Normal discount does not apply. * Please specify color. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 33 A955-3 Pad, Side 9.25 A955-4 Pad, Corner 10.75 A955-5 Box Assy., Aft Battery 475.00 A955-7 Cover Assy. 199.00 A958-1 Bellcrank 28.50 A959-1 Cap, Collective, LH .90 A959-2 Cap, Collective, RH .90 A959-5 Cap, Cyclic 1.00 A959-6 Cap, Cyclic Grip .30 A963-1 Angle 6.25 A964-2 Eye Bolt 72.75 A966-1 Seal 9.25 A966-2 Seal 8.50 A966-3 Seal 22.00 A966-4 Seal 10.75 A969-4 Brace 63.25 A969-5 U-Bolt Assy. 135.00 A974-1 Web Assy. 72.00 A980-2 Face Assy. 150.00 A981-1 Face 155.00 A983-4 Face Assy. 123.00 A986-1 Hinge 34.50 A987-1 Bracket 25.75 A987-2 Bracket 50.25 A987-3 Bracket 78.00 A988-1 Doubler 13.00 A989-1 Strap 8.00 A990-3 Cover 47.75 A992-2 Guide, V-Belt 9.75 A993-1 Clamp 57.75 A993-2 Clamp 52.25 A999-1 Relay Assy., 14V 129.00 A999-3 Relay Assy., 14V 130.00 B019-3 Valve Assy., Cabin Heater 201.00 B021-1 TR Gearbox Assy. 5,529.00** * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 34 Effective January 15, 2008 B032-2 Decal, "Lock After Priming" 3.25 B033-5 Rotor Brake Sub-Assy. 737.00 B033-6 Knob Assy. 81.00 B042-2 Skin (See B430-4) B042-3 Skin (See B429-1) B042-4 Skin (See B429-3) B042-5 Door (See B430-3) B042-6 Door (See B153-4) B042-7 Hinge (See B153-5) B042-8 Hinge (See B424-1) B042-9 Stiffener (See B424-2) B042-10 Doubler (See B424-3) B042-11 Skin (See B423-9) B043-2 Aux. Fuel Tank Assy. 3,325.00 B049-1 Harness Assy. 16.75 B049-2 Harness Assy. 16.75 B049-3 Harness Assy. 15.50 B049-4 Harness Assy. 13.50 B049-5 Warning Light Assy. 50.75 B049-7 Harness Assy. 18.50 B049-8 Harness Assy. 23.50 B049-9 Harness Assy. 36.25 B050-3 Liner 14.50 B051-1 Console Assy. 1,056.00 B051-4 Visor Liner 12.00 B051-8 Liner 48.50 B056-1 Cyclic Spring Assy. 593.00 B056-2 Cyclic Spring Assy. 593.00 B100-1 Line Assy. 107.00 B100-2 Line Assy. 94.25 B101-1 Line Assy. 98.50 B101-2 Line Assy. 77.75 B102-1 Line Assy. 92.75 B102-2 Line Assy. 82.00 B103-1 Line Assy. 89.25 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 35 B103-2 Line Assy. 65.00 B104-1 Line Assy. 109.00 B104-2 Line Assy. 90.25 B104-3 Line Assy. 113.00 B104-4 Line Assy. 93.00 B104-5 Line Assy. 88.00 B106-1 Channel 40.00 B109-1 Arm Assy. 223.00 B110-1 Arm Assy. 243.00 B111-1 Bracket 50.25 B112-1 Lever 85.25 B113-1 Link 25.00 B113-2 Link 29.75 B114-1 Bracket 15.75 B114-2 Bracket 8.00 B115-1 Bearing 60.00 B117-1 Shim 21.00 B117-2 Shim 21.00 B117-3 Shim 21.00 B117-4 Shim 21.00 B117-5 Shim 21.00 B117-6 Shim 21.00 B118-3 Bracket 25.00 B118-4 Angle 18.50 B121-1 Remote Transmit Switch 230.00 B122-1 Fuel Sender, Aux. 317.00 B123-1 Filter, Engine Oil 19.75 B125-1 Connector (See B033-6) B125-2 Connector 45.00 B126-1 Cable Assy. 24.75 B127-2 Guard 30.25 B127-3 Guard 30.25 B128-1 Tube 33.25 B128-2 Tube Assy. (See A729-37) B132-1 Wheel Assy., GroundHandling, Float 379.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 36 Effective January 15, 2008 B132-2 Wheel, Ground Handling, Float 60.25 B133-1 Block Assy. 52.50 B134-2 Block 153.00 B135-1 Doubler 19.25 B136-2 Support 93.50 B139-1 Bearing 23.00 B141-1 Fuel Line 98.50 B142-1 Strip 6.50 B143-1 Angle 44.25 B144-3 Instrument Cluster Assy., 14V 1,850.00 B148-2 Compass Assy., Vertical Card, 14V 732.00 B149-1 Ball Assy., Aluminum 514.00 B151-3 Stop, MR Teeter 7.00 B152-1 Strip 9.75 B152-2 Strip 10.00 B153-1 Stiffener 33.25 B153-2 Stiffener 46.25 B153-3 Stiffener 19.50 B153-6 Door Assy. 109.00 B155-1 Shim 9.75 B156-1 Angle 25.25 B157-1 Mount 23.00 B158-2 Heat Shrink, 1/8 in., Black .45/ft B158-3 Heat Shrink, 3/16 in., Black .55/ft B158-6 Heat Shrink, 3/8 in., Black .75/ft B158-8 Heat Shrink, 1/2 in., Black .80/ft B158-12 Heat Shrink, 3/4 in., Black 1.30/ft B158-103 Heat Shrink, 3/16 in., Clear .65/ft B158-112 Heat Shrink, 3/4 in. x 4 ft., Clear 5.25 B158-212 Heat Shrink, Hi-Temp., 3/4 in., Clear 9.25/ft B159-1 Bracket 21.75 B159-2 Bracket 22.25 B160-1 Pin 17.00 B161-2 Spirap, 1/8 in. .25/ft B161-4 Spirap, 1/4 in. .50/ft * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 37 B161-8 Spirap, 1/2 in. .85/ft B161-102 Spirap, 1/8 in. 1.65/ft B161-102-2 Spirap, 1/8 in. x 2 in. 1.15 B162-1 Clipnut 1.60 B162-2 Clipnut .85 B162-3 Clipnut .90 B162-4 Clipnut 1.45 B163-1 Rod End 142.00 B164-1 Outlet, RH (See B164-3) B164-2 Outlet, LH (See B164-3) B164-3 Outlet, Cabin Heater 10.00 B165-1 Cover 133.00 B166-1 Grille 18.00 B166-3 Plate 29.75 B169-5 Vane Assy. 618.00 B170-1 Data Plate 8.75 B171-1 Balance Weight 3.70 B171-2 Balance Weight 3.70 B171-3 Balance Weight 3.70 B171-4 Balance Weight 3.70 B171-5 Balance Weight 3.70 B171-6 Balance Weight 3.70 B173-1 V-Belt, Alternator 35.00 B174-1 Fanwheel Assy. 2,461.00 B175-1 Velcro Hook Tape, 1 in., Black .40/ft B175-2 Velcro Loop Tape, 1 in., Black .40/ft B175-31 Velcro Hook Tape, 1 in., Beige .40/ft B175-32 Velcro Loop Tape, 1 in., Beige .40/ft B181-2 Angle 13.50 B181-3 Angle 16.25 B182-1 Cover 29.00 B182-2 Cover 30.75 B184-1 Switch Assy. 59.00 B184-2 Switch Assy. 59.00 B184-3 Switch Assy. 66.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 38 Effective January 15, 2008 B184-6 Cover 6.75 B184-7 Cover 6.75 B184-8 Cover 6.75 B184-9 Cover 6.75 B189-1 Deflector 20.00 B189-2 Deflector 20.50 B189-4 Deflector 21.00 B190-1 Cover 19.25 B193-1 Window Plate 47.25 B193-2 Window Plate 47.25 B193-3 Window Plate 47.25 B193-4 Window Plate 47.25 B193-5 Window Plate 47.25 B193-6 Window Plate 47.25 B193-7 Window Plate 47.25 B193-8 Window Plate 47.25 B193-11 Window Plate 47.25 B193-12 Window Plate 47.25 B193-13 Window Plate 47.25 B193-14 Window Plate 47.25 B193-15 Window Plate 47.25 B193-16 Window Plate 47.25 B193-17 Window Plate 47.25 B193-18 Window Plate 47.25 B193-19 Window Plate 47.25 B195-3 Post Light Assy. 42.75 B195-6 Post Light Assy. 41.50 B195-9 Connector Nut 10.00 B195-10 Post Light Assy. 39.75 B195-14 Post Light Assy. 53.75 B195-17 Switch Light, 14V 40.00 B196-1 Lamp, Clear .60 B196-2 Lamp, Clear .85 B196-3 Lamp, Blue/White 3.00 B196-5 Lamp, Clear 2.25 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 39 B196-21 Lamp, Clear .80 B196-26 Lamp, Clear 35.50 B197-1 Face 177.00 B198-1 Light, Amber 11.00 B198-2 Light, Red 11.00 B200-1 Bracket 60.50 B200-3 Arm 28.00 B201-1 Switch Assy. 52.75 B202-1 Drain Plug Assy. 29.50 B202-2 Plug 19.00 B204-1 Rivet .09 B204-2 Rivet .12 B204-3 Rivet .09 B204-4 Rivet .10 B206-1 Face 215.00 B219-3 Pocket Assy. (See B219-3BL,BR,GR,TN) B219-3BL Pocket Assy., Blue 22.25 B219-3BR Pocket Assy., Brown 22.25 B219-3GR Pocket Assy., Gray 22.25 B219-3TN Pocket Assy., Tan 22.25 B219-4 Strap Assy. (See B219-4BL,BR,GR,TN) B219-4BL Strap Assy., Blue 4.25 B219-4BR Strap Assy., Brown 4.25 B219-4GR Strap Assy., Gray 4.25 B219-4TN Strap Assy., Tan 4.25 B220-1 Spacer 19.25 B223-1 Yoke, TR Drive Shaft 558.00 B223-2 Yoke, TR Drive Shaft 558.00 B223-3 Yoke, TR Drive Shaft 558.00 B223-4 Yoke, TR Drive Shaft 558.00 B223-6 Yoke, TR Drive Shaft 558.00 B224-1* TR Drive Shaft Assy. 1,666.00 B224-3* TR Drive Shaft Assy. 1,750.00 B225-1 Face Assy. 112.00 B226-2 Bracket, MR Teeter Stop 27.75 * Prices are subject to change without notice. Normal discount does not apply. * Shipping crate required. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 40 Effective January 15, 2008 B227-1 Switch Assy., Test 5.00 B227-2 Switch Assy., COM 42.00 B227-3 Lock Washer .30 B227-4 Dress Nut 1.25 B228-1 Window Deflector 53.00 B228-2 Angle 11.25 B229-1 Adaptor 29.50 B229-2 Lip 66.00 B232-1 Handle Pin 51.00 B233-1 Tube Assy. 9.25 B236-1 Cover 33.25 B237-5 Battery, 12V (See B237-6) B237-6 Battery, 12V 273.00 B238-1 Bolt 9.25 B241-1 Wire Harness Assy. 71.75 B242-2 Stop 7.50 B247-5 Governor Assy. 1,963.00 B249-7 Arm Assy., Carb. Heat 88.50 B252-4 Mount 42.75 B252-6 Bracket 33.00 B253-1 Anchor 155.00 B254-1 Strainer Assy. 35.75 B255-1 Support Assy. 53.50 B258-1 Adapter 35.00 B260-2 Terminal .15 B260-3 Terminal .20 B260-4 Terminal .25 B260-5 Terminal .30 B260-6 Terminal .30 B260-20 Terminal .85 B261-2 Splice .85 B261-3 Splice .70 B262-6 Receptacle .12 B262-7 Receptacle .55 B263-1 Pin 1.65 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 41 B263-2 Socket 1.65 B263-3 Pin 1.45 B263-4 Socket 1.35 B263-10 Housing .20 B263-11 Housing .15 B263-12 Housing .20 B263-13 Housing .20 B263-14 Housing .30 B263-15 Housing .40 B263-16 Housing .40 B263-17 Housing .35 B263-18 Housing .80 B263-19 Housing .90 B263-20 Housing 1.40 B263-22 Housing 1.65 B263-23 Housing 1.55 B263-24 Housing 6.25 B263-25 Housing 2.40 B263-32 Housing .60 B263-33 Housing .50 B263-35 Housing .85 B263-67 Housing .30 B263-68 Housing .30 B264-1 Pin .55 B264-2 Socket 1.05 B264-3 Pin .55 B264-4 Socket 1.20 B264-12 Receptacle 9.50 B264-13 Plug 8.50 B266-4 Sleeving, 1/4 in. Expandable .75/ft B266-8 Sleeving, 1/2 in. Expandable 1.25/ft B266-20 Sleeving, 1-1/4in. Expandable 3.25/ft B268-3 Tape, Lacing (1500 ft. per roll) 45.00/rl B270-1 Sealant (3.5 oz., in a 6 oz. cartridge) 32.00 B270-1CN Sealant (Pint can) 70.25 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 42 Effective January 15, 2008 B270-2CG Sealant, Metal (6 oz. cartridge) 17.25 B270-4 Sealant, Silicone (10 oz. tube) 15.25 B270-5 Sealant (7.5 oz. tube) 193.00 B270-6 Sealant/Lubricant (4 oz. tube) 9.75 B270-7 Adhesive (17 oz. spray can) 22.50 B270-8QT Adhesive, Contact (Quart can) 56.25 B270-9 Adhesive, Epoxy (2 oz. kit) 46.50 B270-10 Adhesive, Loctite (1.69 oz.) 64.75 B270-11 Adhesive, Loctite (1.69 oz.) 61.75 B270-14.5OZ Adhesive (.5 oz. bottle) 12.25 B270-15 Adhesive (Quart) 69.25 B270-17 Adhesive (3 grams) 6.50 B270-18 Adhesive, Black (5 oz. tube) 18.75 B270-20 Adhesive, Thread-Locking (50 ml) 67.00 B270-21 Protectant (11 oz. can) 14.50 B274-518 Cable 3.50/ft B277-4 Clamp 1.75 B277-8 Clamp 2.30 B277-12 Clamp 1.90 B277-24 Clamp 2.10 B277-28 Clamp 2.75 B277-32 Clamp 2.00 B277-36 Clamp 2.80 B277-48 Clamp 2.65 B277-56 Clamp 2.65 B278-1 Hole Plug 8.50 B280-1 Switch Assy., Governor 44.25 B280-4 Relay Assy. 42.00 B282-1 Inlet 195.00 B283-1 Hose Assy. 90.75 B283-2 Hose Assy. 122.00 B283-6 Hose Assy. 142.00 B286-2 Governor ControllerAssy. 1,005.00 B288-1 Doubler 18.25 B288-2 Doubler 21.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 43 B288-3 Doubler 10.75 B289-1 Bolt 2.75 B289-2 Bolt 4.00 B292-3 Rod End 29.00 B294-2 Support 18.00 B295-1 Clip 11.75 B297-2 Circuit Breaker, 2 amp 32.00 B297-3 Circuit Breaker, 3 amp 32.00 B297-5 Circuit Breaker, 5 amp 32.00 B297-7 Circuit Breaker, 7.5 amp 32.00 B297-10 Circuit Breaker, 10 amp 32.00 B297-20 Circuit Breaker, 20 amp 32.00 B297-120 Circuit Breaker, 20 amp 32.00 B299-1 Link, Long 27.00 B299-3 Link 30.25 B300-1 Switch Assy. 12.00 B300-2 Switch Assy. 13.00 B300-4 Switch 34.25 B300-5 Switch Assy. 21.75 B301-8 Brass Nut .25 B303-1 Bearing 82.75 B304-1 Capacitor Assy. 6.00 B304-2 Diode Assy. 18.25 B304-3 Diode Assy. 14.50 B304-8 Diode Assy. 22.50 B304-10 Fuse Holder Assy. 18.50 B306-4 Mount 35.25 B308-1 Oil Pressure Sender 122.00 B310-1 Injector, Cone Fitting 20.75 B310-2 Injector, Flared Fitting 34.50 B312-1 Guard Assy., Tail Rotor 164.00 B315-1 Clip 5.25 B320-1 Horn Assy., 14V 36.50 B320-2 Hall Effect Sender Assy. 104.00 B322-4 Cover 20.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 44 Effective January 15, 2008 B322-6 Cover 18.75 B322-9 Cover 19.50 B328-1 Connecting Rod Assy. 119.00 B329-1 Turn Coordinator Call B330-2 Palnut .20 B330-5 Palnut .25 B330-6 Palnut .25 B330-7 Palnut .25 B330-13 Palnut .65 B330-15 Palnut .25 B330-16 Palnut .20 B330-19 Palnut .17 B332-42 Lock Washer .07 B332-43 Lock Washer .15 B332-44 Lock Washer .12 B332-45 Lock Washer .45 B332-98 Lock Washer (See MS35338-136B) B332-441 Lock Washer .14 B338-1 ICS Control 938.00 B339-1 Mount 125.00 B340-4 Nut 1.95 B340-8 Nut 1.45 B341-1 Outside Air Temperature Gauge 180.00 B341-2 Outside Air Temperature Probe Assy. 105.00 B345-1 Link, TR Pitch (See B345-3) B345-3 Link, TR Pitch 299.00 B349-1 Doubler (See D615-1) B350-1 Pin .25 B350-2 Pin .55 B353-1 Seal 1.50 B356-1 Skin 35.00 B356-2 Strip 11.75 B356-3 Gutter, LH 22.75 B356-4 Gutter, RH 22.75 B359-1 Ty-Rap, Releasable 4.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 45 B361-1 Bearing 337.00 B364-1 P/P Tube Assy., Throttle 173.00 B365-1 Scoop Assy. 159.00 B367-1 Drain Valve 213.00 B381-1 Fire Extinguisher (14 oz.) 100.00 B381-2 Fire Extinguisher (See B381-1) B387-3 Decal, "Collective Activated" 1.40 B387-750 Wire 10.00 B387-751 Wire 10.00 B391-1 Splitter (See B391-2) B391-2 Splitter 11.75 B393-1 Cam 10.00 B394-1 Scoop Assy. 138.00 B400-1 Cover 11.00 B401-1 Grommet 2.15 B407-1 Tape 8.75 B408-1 Spring, Long 1.15 B408-2 Spring, Short 1.35 B409-2 Splice 22.25 B409-4 Tab 15.25 B409-5 Gusset 10.25 B409-6 Tab 11.25 B409-7 Retainer 29.75 B409-8 Tape 19.25 B410-1 Retainer, Outside 33.50 B410-2 Retainer, Inside 33.50 B410-3 Stiffener 36.75 B410-6 Spacer 14.25 B414-1 Damper Instl. 424.00 B415-1 Relay, 14V 457.00 B423-1 Channel Assy. 71.00 B423-2 Doubler 12.00 B423-3 Stiffener 55.75 B423-4 Stiffener 23.50 B423-7 Channel 20.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 46 Effective January 15, 2008 B423-9 Skin 15.00 B423-10 Doubler 12.75 B424-1 Hinge 30.50 B424-2 Stiffener 30.00 B424-3 Doubler 12.75 B425-1 Gasket 14.75 B426-1 Switch, Oil 60.50 B428-1 Frame 101.00 B429-1 Skin 46.25 B429-2 Skin 65.75 B429-3 Skin 41.00 B429-5 Frame 96.25 B430-3 Door, Aux Tank 36.75 B430-4 Skin 32.50 B439-1 Guide Assy., P/P Tube 403.00 B490-2 Panel 57.75 B491-1 Tube Assy. 506.00 B522-1 Mixture Control 161.00 B546-1 Yoke 219.00 B549-1 Retainer 105.00 B552-1 Retainer 125.00 B563-1 Plug, Bubble Sight Gauge 207.00 B563-2 Plug, Flat Sight Gauge 92.50 B564-1 Link 67.75 B565-1 Foot Switch 226.00 B566-1 Chip Detector, MRGB 279.00 B566-2 Chip Detector, TRGB 200.00 B567-44 Screw .30 B800-1 Doubler Instl. 28.25 B802-1 Harness Assy. 101.00 B802-2 Harness Assy. 77.50 B802-3 Harness Assy., Splitter 35.75 B802-4 Harness Assy., Adapter 25.00 B803-1 Harness Assy. 24.75 B804-2 Harness Assy. 116.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 47 B804-3 Harness Assy., Console 53.75 B805-1 Doubler 27.25 B809-1 Doubler 13.75 B809-2 Doubler 15.75 B811-1 Bracket 37.25 B811-2 Wire Harness Assy. 24.00 B815-1 Pin 115.00 B815-2 Pin 61.25 B816-1 Pad 10.50 B817-1 Filter Assy. 101.00 B819-1 Adapter 50.50 B900-6 A949-1,-2 Floats, Painted 10,830.00** C049-7 Wire Harness Assy. 13.00 C049-8 Wire Harness Assy. 11.75 C049-9 Wire Harness Assy. 51.25 C049-11 Wire Harness Assy. 12.25 C057-2 Air Box Assy. (See A057-2) C058-5 Grip Assy., Cyclic 2,750.00 C105-3 Journal 47.50 C130-5 Spacer 16.00 C130-9 Spacer 16.00 C130-41 Spacer 3.35 C214-5 Plate, RH 22.25 C285-1 Knob 5.25 C309-4 Panel Assy. 471.00 C342-1 Arm 59.50 C425-5 Hinge 11.50 C425-7 Door, LH 55.75 C425-8 Door, RH 55.75 C439-3 Spacer 26.00 C439-4 Roller 6.00 C439-5 Pin 6.50 C439-8 Retainer 7.50 C439-9 Bushing 9.00 C522-8 Control Cable, Carb. Heat 37.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 48 Effective January 15, 2008 C528-1 Mount, Strobe Light 6.50 C565-2 Door 12.00 C579-2 Inlet 90.00 C615-1 Gasket 17.25 C615-2 Gasket 17.25 C636-2 Support 40.50 C648-2 Bearing, Journal 52.50 C649-1 Oil Cooler 889.00 C654-43 Decal, "+ 24V" 2.00 C654-44 Decal, "+ 12V" 1.60 C654-45 Decal, "-" 1.00 C682-2 Barrier 19.25 C683-5 Clamp 101.00 C683-6 Damper, Removable 111.00 C683-8 Damper, Fixed 332.00 C696-1 Detector Assy., Carbon Monoxide 215.00 C700-7 Ball 59.00 C771-1 Air Filter 14.25 C830-1A Switch Sub-Assy. 119.00 D113-1A Link 36.75 D119-1 Knob, Rotor Brake 9.25 D229-4 Cover 13.75 D333-3 Fitting 13.00 D333-5 Collar 18.50 D333-7 Catch 31.75 D333-8 Block, Catch 19.50 D333-10 Block 19.50 D333-11 Plate 17.50 D334-5 Bellcrank Assy. 469.00 D373-3 Cover 23.00 D379-1 Grip 119.00 D379-2 Cover 16.25 D384-3 Cover 36.25 D606-1 Spotlight, LED, 14V 340.00 D663-1 Clamp .40 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 49 D688-3 Cover 9.00 D690-1 Grip 94.50 D690-2 Cover 16.25 D723-1 Adapter Assy., Oil Filter 466.00 D747-5 Shroud Weldment 272.00 D748-3 Alternator Assy., 14V-60 Amp 2,326.00 D754-4 Baffle Assy. 233.00 D756-2 Bellcrank Assy. 314.00 D774-3 Spring 1.00 D774-4 Spring 1.00 D774-5 Spring 1.30 D774-13 Spring .75 D805-3 Restraint 8.50 D830-1 Hourmeter, Round 66.25 A-4138 Bearing 17.75 A-641R Inner Wire 22.75 A-641R1 Inner Wire 32.75 A1425A-2 Spotlight, withoutBulb 279.00 A15A Diode 1.25 A200CNIWBKSH14 Switch Light (See B195-17) A200CNRDBKSH14 Switch Light (See B195-17) A3135-017-24A Washer .12 A3135-017-935 Washer (See A3135-017-24A) A3236-012-24A Washer .70 A3236-012-935 Washer (See A3236-012-24A) A354R-BK Head Assy. 26.50 A4050 Bearing 35.25 A409 Clamp (See 01-0450685-00) A4138-B Cup 46.25 A425 Lens Retainer 17.75 A455 Gasket 14.75 A457A Lens 66.25 A467 Gasket 16.25 A469B Flash Tube Assy. 103.00 A508-14 Halogen Lamp (See 34-0412070-63) * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 50 Effective January 15, 2008 AA-300-101-2-1 Blower Wheel 16.00 AD46BS Rivet (See B204-3) AF5-1 Aircraft Logbook, Green 16.50** AFH1 Fuse Holder (See B304-10) AGC-1.5 Fuse .35 AGC-3 Fuse .35 ALX-8521LS Alternator, 12V-70 Amp 851.00 ALY-8520LS Alternator, 12V-60 Amp 538.00 AN3-3A Bolt .17 AN3-4A Bolt .20 AN3-5A Bolt .17 AN3-6A Bolt .20 AN3-7A Bolt (See NAS6603-8) AN3-12A Bolt .40 AN3-16A Bolt .35 AN3-35A Bolt 2.00 AN3-41A Bolt 1.50 AN3-44A Bolt 2.05 AN4-3A Bolt .25 AN4-5A Bolt .30 AN4-6A Bolt .35 AN4-13A Bolt .65 AN4-20A Bolt .70 AN4-25A Bolt 1.20 AN4-51A Bolt 15.00 AN6-11A Bolt 1.20 AN6-16 Bolt 2.25 AN6-16A Bolt 1.80 AN6-21 Bolt 3.50 AN6-37A Bolt 3.25 AN10-41A Bolt, Fwd Left Mount 19.25 AN44-23A Eye Bolt (See AN44-24A) AN44-24A Eye Bolt 27.50 AN315-3R Nut .11 AN316-4R Nut .13 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 51 AN316-5R Nut .20 AN316-6R Nut .35 AN316C5R Nut 1.20 AN320-8 Nut 2.65 AN320-10 Nut 3.75 AN320-15 Nut 9.75 AN320-18 Nut 13.50 AN340-8 Nut (See B301-8) AN340B8 Brass Nut (See B301-8) AN500-4-12 Screw 1.30 AN502-6-6 Screw 1.75 AN503-8-4 Screw .75 AN503-8-6 Screw .45 AN503-8-8 Screw .50 AN515-4R8 Screw (See MS35206-217) AN515UB8R10 Screw .55 AN515UB8R12 Screw (See B567-44) AN515UB8R20 Screw .70 AN520-10R30 Screw 3.75 AN525-832R6 Screw .10 AN525-832R8 Screw .15 AN525-832R10 Screw .15 AN525-832R12 Screw .25 AN525-832R18 Screw .50 AN526C832R6 Screw 1.10 AN526C832R8 Screw .14 AN526C832R9 Screw .25 AN526C832R12 Screw .14 AN742-3 Clamp .35 AN742-4 Clamp .35 AN742D12 Clamp 1.25 AN814-8D Filler Plug 4.75 AN814-8DL Filler Plug 6.75 AN815-2D Union 7.75 AN816-3D Nipple 3.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 52 Effective January 15, 2008 AN816-6D Nipple 5.00 AN822-2D Elbow (See MS20822-2D) AN822-6D Elbow (See MS20822-6D) AN825-6D Tee Fitting (See MS20825-6D) AN826-6D Tee (See MS20826-6D) AN894D4-2 Bushing 15.00 AN894D4-3 Bushing 8.50 AN894D6-4 Bushing 12.00 AN917-1D Tee 20.75 AN924-5D Nut 2.05 AN931-5-9 Grommet (See MS35489-9) AN931-9-13 Grommet (See MS35489-16) AN931A6-10 Grommet (See MS35489-40) AN960-4 Washer (See NAS1149FN432P) AN960-8 Washer (See NAS1149FN832P) AN960-916L Washer (See NAS1149F0932P) AN960-1616L Washer .40 AN960-PD8L Washer (See NAS1149DN816J) AN960-PD416L Washer (See NAS1149D0416J) AN960D8 Washer (See NAS1149DN832H) AN970-3 Washer .10 AN970-4 Washer .15 AS111 O-Ring .25 AV-534L Antenna, VHF COM 104.00 B0500-022-S Belleville Washer .60 B1000-035-S Spring Washer .75 B7260 Chip Detector (See B566-1) BC315-100-2 Starter, 12V 840.00 BCC-R22-000 Bubble Cover 395.00 BCC-R22-020 Extended Bubble Cover 890.00 BCC-R22-100 Engine Cover 525.00 BCC-R22-300 Rotor Hub Cover 300.00 BCC-R22-400 Main Rotor Blade Cover 365.00 BCC-R22-600 Tail Rotor/Gearbox Cover 205.00 BCC-R22-700 Tuna Boat Bubble Cover (Complete set) 1,790.00** * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 53 BETA112R Amplifier, 14V 296.00 BP4100 Pulley 2.75 C0420-042-1250S Spring (See D774-13) C0420-063-1500S Spring (See D774-5) C0420-063-2000S Spring (See D774-4) C23-805M Holder, Deviation Card 2.50 C23-807 Deviation Card 1.70 C6352-10Z1 Nut .70 CHK-VK Headset, Comtronics Call CH48108 Oil Filter (See B123-1) CI-121 Antenna, VHF 273.00 CI-122 Antenna, VHF 279.00 CI-177-20 Antenna, UHF/FM 423.00 CI-248-5 Antenna, VHF 240.00 CI-259E Antenna, NAV 270.00 CI-271 Antenna, UHF 244.00 CI-273 Antenna, UHF 225.00 CI-292-3 Antenna, VHF/FM 366.00 CI-505 Diplexer, Dual 251.00 CI-507 Diplexer 195.00 CI-2480-201 Antenna, GPS/COM 515.00 CI-4510-7C Antenna (See CI-2480-201) DMC-63-3-A Antenna (See CI-292-3) DP-250 Hole Plug .45 DP-625 Hole Plug 1.10 DP-875 Hole Plug .50 E-8948 Engine Enamel Gray Paint ($38.00/qt.) 152.00/gl E0240-029-1120S Spring 15.00 E0240-037-3500S Spring 1.45 EF5-1 Engine Logbook, Red 16.50 F900WHITE Torque Seal 2.85 FCGD1010 Cover, Web Guide 24.00 FP-161 Plug .30 FW-1111-D00 Relay 126.00 H2100 Halogen Bulb 30.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 54 Effective January 15, 2008 HTB-62I Fuse Holder 4.00 JS-555 Switch (See B565-1) JV-72 Actuator 10.50 K2404-1/8-4 Primer Pump 294.00 KM921-1 Fastener 17.25 L8017 Focused Light 57.00 LJS-0816 Bearing 6.75 LJS0712 Bushing 14.00 LMWBQK Antenna, VHF/FM 65.75 LW-14060 Clamp (Lycoming) 3.50* LW-14371 Alternator, 60Amp (Lycoming) 825.00* LW-15986 Carburetor (Lycoming) 4,388.00* LW-16783-13 Dip Stick, 6 Qts Marking (Lycoming) 170.00* LW-16783-22 Dip Stick, 6 Qts Marking (Lycoming) 225.00* LW-18661 Seal, Shroud Tube (Lycoming) 2.35* LW-18959-150-25 Clamp (Lycoming) 16.50* LW-18959-175-25 Clamp (Lycoming) 15.00* LW-M-2375 Plate, Spark Plug Cable (Lycoming) 8.50*** M2402 Ignition Harness Kit, LH & RH 304.00 M2403 Ignition Harness 239.00 M2404 Ignition Harness 239.00 M8805-55-001 Switch (See B565-1) M8805/55-005 Switch (See B565-1) MS122162 Thread Insert .70 MS16562-4 Spring Pin .20 MS16562-11 Spring Pin .50 MS16562-14 Spring Pin 1.10 MS16562-15 Spring Pin .80 MS16562-18 Spring Pin .95 MS16562-23 Spring Pin .20 MS16562-24 Spring Pin .35 MS16562-27 Spring Pin .20 MS16562-35 Spring Pin .25 MS16562-36 Spring Pin .40 MS16624-1025 Retaining Ring (See MS16624-2025) * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 55 MS16624-2025 Retaining Ring .50 MS16625-1081 Retaining Ring 5.75 MS17825-4 Nut 2.65 MS20002-4 Washer .11 MS20002-18 Washer 1.00 MS20002C8 Washer .30 MS20074-04-03 Bolt 1.80 MS20074-04-04 Bolt 1.75 MS20074-04-06 Bolt, Drilled 1.75 MS20074-04-10 Bolt 2.25 MS20074-04-15 Bolt 2.75 MS20074-05-05 Bolt 3.00 MS20365-1018 Nut (MS21044N10) 1.30 MS20392-1C13 Pin 1.00 MS20392-2C7 Pin .55 MS20392-2C13 Pin .65 MS20392-2C33 Pin .85 MS20426AD3-4S Rivet .01 MS20426AD3-4.5S Rivet .01 MS20426AD4-5S Rivet .01 MS20470AD3-3S Rivet .01 MS20470AD3-3.5S Rivet .01 MS20470AD3-4.5S Rivet .01 MS20470AD3-5S Rivet .01 MS20470AD3-5.5S Rivet .01 MS20470AD3-7S Rivet .01 MS20470AD4-4S Rivet .01 MS20470AD4-4.5S Rivet .01 MS20470AD4-5S Rivet .03 MS20470AD4-6S Rivet .02 MS20470AD5-8S Rivet .04 MS20605R3W2 Nutplate Rivet .25 MS20615-3M3S Rivet .04 MS20822-2D Elbow 21.50 MS20822-6D Elbow 13.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 56 Effective January 15, 2008 MS20822-8 Elbow 23.50 MS20822-8D Elbow 10.50 MS20823-8 Elbow 28.50 MS20825-6D Tee 20.50 MS20826-6D Tee 15.75 MS20913-1D Drain Plug (See PI0808S) MS20995C-020 Safety Wire (See MS20995C20) MS20995C-032 Safety Wire (See MS20995C32) MS20995C-041 Safety Wire (See MS20995C41) MS20995C20 Safety Wire (0.020 in. dia.) 20.50/rl MS20995C32 Safety Wire (0.032 in. dia.) 19.25/rl MS20995C41 Safety Wire (0.041 in. dia.) 19.75/rl MS21042L04 Nut .65 MS21042L06 Nut .45 MS21042L08 Nut .25 MS21042L3 Nut .35 MS21042L4 Nut .45 MS21042L5 Nut .85 MS21042L6 Nut 1.10 MS21044N06 Nut .30 MS21044N4 Nut .45 MS21044N10 Nut 2.40 MS21069L08 Nutplate .50 MS21069L3 Nutplate .55 MS21070L08 Nutplate 1.15 MS21071L08 Nutplate .60 MS21071L3 Nutplate .80 MS21075L3E Nutplate 1.75 MS21083-N5 Nut .50 MS21086L08 Nutplate .70 MS21266-1N Grommet .65 MS21333-96 Clamp 1.15 MS21333-102 Clamp 1.40 MS21919DG56 Clamp 4.00 MS21919WCH8 Clamp 1.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 57 MS21919WDG2 Clamp .70 MS21919WDG3 Clamp .95 MS21919WDG4 Clamp .70 MS21919WDG5 Clamp .80 MS21919WDG6 Clamp 1.00 MS21919WDG7 Clamp 1.00 MS21919WDG8 Clamp 1.00 MS21919WDG9 Clamp 1.00 MS21919WDG10 Clamp 1.05 MS21919WDG11 Clamp 1.50 MS21919WDG12 Clamp 1.15 MS21919WDG14 Clamp 1.50 MS21919WDG24 Clamp 2.40 MS21919WDG28 Clamp 2.65 MS21919WDG40 Clamp 3.50 MS21919WDG48 Clamp 3.75 MS24402-2D Tee 29.50 MS24566-1B Pulley 27.00 MS24665-69 Cotter Pin .06 MS24665-132 Cotter Pin .02 MS24665-134 Cotter Pin .04 MS24665-151 Cotter Pin .04 MS24665-210 Cotter Pin .04 MS24665-285 Cotter Pin .05 MS24665-355 Cotter Pin .05 MS24693-S2 Screw .08 MS24693-S26 Screw .10 MS24693-S27 Screw .09 MS24693-S30 Screw .12 MS24693-S32 Screw .08 MS24693-S51 Screw .09 MS24694-C5 Screw .30 MS24694-C7 Screw .20 MS24694-C51 Screw .25 MS24694-C54 Screw .50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 58 Effective January 15, 2008 MS24694-S3 Screw .13 MS24694-S4 Screw .11 MS24694-S9 Screw .12 MS24694-S15 Screw .25 MS24694-S17 Screw .35 MS24694-S51 Screw .15 MS24694-S54 Screw .18 MS24694-S59 Screw .40 MS25068-23 Toggle Switch 81.00 MS25171-1S Nipple 1.70 MS25171-2S Nipple 2.20 MS25171-4S Nipple 2.60 MS25224-1 Switch Guard 29.00 MS27039C0805 Screw .50 MS27039C0806 Screw .55 MS27039C0807 Screw .55 MS27039C0808 Screw .60 MS27039C0809 Screw .60 MS27039C0810 Screw .70 MS27039C0812 Screw 1.00 MS27039C0816 Screw 1.10 MS27039C0818 Screw 1.50 MS27039C1-05 Screw .85 MS27039C1-06 Screw .80 MS27039C1-07 Screw .70 MS27039C1-08 Screw .80 MS27039C1-09 Screw .85 MS27039C1-12 Screw 1.15 MS27039C1-18 Screw 1.60 MS27039C1-24 Screw 2.35 MS27039DD1-26 Screw 1.85 MS27981-1B Button .20 MS27981-3B Socket .20 MS27981-4B Stud .20 MS27981-5B Eyelet .20 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 59 MS28775-014 Packing .35 MS28775-018 Packing 1.20 MS28775-131 Packing .60 MS28778-4 Packing .90 MS28778-5 Packing .90 MS28778-6 Packing 1.15 MS29512-4 Gasket .30 MS29512-5 Packing .80 MS3116F12-10SX Plug 37.00 MS3367-3-9 Ty-Rap .25 MS3367-4-9 Ty-Rap .02 MS3367-5-0 Ty-Rap .06 MS3367-5-9 Ty-Rap .04 MS3367-6-0 Ty-Rap .65 MS3367-7-9 Ty-Rap .11 MS33737-12C Nut 1.70 MS33737-13C Nut 1.75 MS33737-15C Nut 1.40 MS33737-16C Nut 1.65 MS35058-23 Toggle Switch (See B300-4) MS35206-213 Screw .08 MS35206-214 Screw .10 MS35206-215 Screw .05 MS35206-218 Screw .10 MS35206-219 Screw .10 MS35206-222 Screw .20 MS35206-226 Screw .06 MS35206-227 Screw .06 MS35206-228 Screw .06 MS35206-229 Screw .09 MS35206-230 Screw .08 MS35206-231 Screw .08 MS35206-232 Screw .08 MS35206-233 Screw .15 MS35206-241 Screw .10 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 60 Effective January 15, 2008 MS35206-246 Screw .08 MS35206-247 Screw .18 MS35206-279 Screw .40 MS35214-27 Screw .15 MS35333-36 Washer .03 MS35335-33 Washer .11 MS35338-136B Lock Washer .20 MS35489-1 Grommet .35 MS35489-4 Grommet .11 MS35489-6 Grommet .20 MS35489-9 Grommet .45 MS35489-16 Grommet .75 MS35489-18 Grommet 1.10 MS35489-20S Grommet 1.40 MS35489-33 Grommet .55 MS35489-40 Grommet .70 MS35650-302 Nut .08 MS35769-8 Gasket .55 MS35769-9 Gasket .50 MS35769-11 Gasket .95 MS51861-35 Screw .15 MS51861-37C Screw .30 MS91528-0C1B Knob 9.75 MZ4224 Starter 859.00 N-3030 Boot, Push Button 5.00 N-5032-B Boot, Toggle 7.50 NAS1149BN616H Washer .12 NAS1149D0316J Washer .09 NAS1149D0416J Washer .03 NAS1149D0463K Washer .30 NAS1149D0516J Washer .05 NAS1149D0616J Washer .09 NAS1149DN816J Washer .02 NAS1149DN832H Washer .03 NAS1149F0316P Washer .06 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 61 NAS1149F0332P Washer .02 NAS1149F0363P Washer .03 NAS1149F0432P Washer .03 NAS1149F0463P Washer .04 NAS1149F0516P Washer .05 NAS1149F0532P Washer .03 NAS1149F0563P Washer .04 NAS1149F0632P Washer .03 NAS1149F0663P Washer .06 NAS1149F0732P Washer .08 NAS1149F0763P Washer .09 NAS1149F0832P Washer .08 NAS1149F0863P Washer .11 NAS1149F0932P Washer .11 NAS1149F1063P Washer 1.65 NAS1149F1832P Washer .40 NAS1149FN232P Washer .03 NAS1149FN416P Washer .02 NAS1149FN432P Washer .05 NAS1149FN616P Washer .02 NAS1149FN632P Washer .03 NAS1149FN816P Washer .02 NAS1149FN832P Washer .02 NAS1291-8 Nut 7.00 NAS1291-10 Nut 21.00 NAS1291C08M Nut .80 NAS1304-17 Bolt 1.70 NAS1304-28 Bolt 2.15 NAS1304-35 Bolt 3.75 NAS1304-38 Bolt 4.75 NAS1305-35 Bolt 8.00 NAS1305-46 Bolt 8.75 NAS1329H08K75L Rivnut 2.05 NAS1330H3K116L Rivnut 2.00 NAS1351-3-8P Screw, Socket Cap 1.15 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 62 Effective January 15, 2008 NAS1351-3-24P Screw, Socket Cap 4.75 NAS1351-4-28P Screw, Socket Cap 3.75 NAS1351-5H-20P Screw, Socket Cap 9.50 NAS1351-8H-40P Screw, Socket Cap 19.75 NAS1352-06-8 Screw, Socket Cap 1.35 NAS1352-08-8P Screw, Socket Cap .85 NAS1352-08-12P Screw, Socket Cap .70 NAS1352-08H10P Screw, Socket Cap 3.25 NAS1352-08LE6P Screw, Socket Cap 2.40 NAS1352-3H6P Screw, Socket Cap 4.75 NAS1352-3H14 Screw, Socket Cap 3.50 NAS1352-4-24P Screw, Socket Cap 2.55 NAS1352-4H10P Screw, Socket Cap 1.65 NAS1352-4H14P Screw, Socket Cap 7.75 NAS1352-4H20P Screw, Socket Cap 23.75 NAS1352-4H30P Screw, Socket Cap 7.75 NAS1352-C08-6 Screw .95 NAS1407N9L14 Pin .90 NAS1919B04S02 Rivet 2.15 NAS428-3A-12 Bolt 2.30 NAS428-3A6 Bolt 1.15 NAS487-20 Nut (See MS33737-15C) NAS487-21 Nut (See MS33737-16C) NAS557-6A Grommet .85 NAS557-8A Grommet 1.15 NAS557-18B Grommet 3.00 NAS557-22A Grommet 2.80 NAS602-10 Screw (See NAS602-10P) NAS602-10P Screw .15 NAS602-12 Screw .25 NAS603-18 Screw .35 NAS620-4 Washer .02 NAS620-5 Washer .02 NAS620-6 Washer .04 NAS620-8 Washer .06 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 63 NAS620-8L Washer .02 NAS620-10 Washer .30 NAS620-10L Washer .04 NAS630-80 Bolt 27.50 NAS6603-1 Bolt .30 NAS6603-2 Bolt .20 NAS6603-3 Bolt .30 NAS6603-4 Bolt .30 NAS6603-5 Bolt .35 NAS6603-6 Bolt .35 NAS6603-7 Bolt .30 NAS6603-8 Bolt .40 NAS6603-9 Bolt .35 NAS6603-10 Bolt .30 NAS6603-11 Bolt .40 NAS6603-12 Bolt .45 NAS6603-13 Bolt .45 NAS6603-14 Bolt 1.05 NAS6603-15 Bolt .55 NAS6603-16 Bolt .60 NAS6603-18 Bolt .90 NAS6603-20 Bolt .80 NAS6603-29 Bolt 1.55 NAS6603-31 Bolt 11.00 NAS6603-36 Bolt 4.50 NAS6604-2 Bolt .65 NAS6604-3 Bolt 1.15 NAS6604-4 Bolt .35 NAS6604-5 Bolt .50 NAS6604-6 Bolt 1.10 NAS6604-7 Bolt .80 NAS6604-8 Bolt .55 NAS6604-9 Bolt .70 NAS6604-10 Bolt .85 NAS6604-11 Bolt .85 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 64 Effective January 15, 2008 NAS6604-12 Bolt .70 NAS6604-15 Bolt .80 NAS6604-16 Bolt .80 NAS6604-17 Bolt 1.00 NAS6604-18 Bolt .85 NAS6604-19 Bolt .95 NAS6604-20 Bolt .90 NAS6604-21 Bolt .95 NAS6604-22 Bolt .95 NAS6604-23 Bolt 1.15 NAS6604-24 Bolt 1.15 NAS6604-25 Bolt 1.20 NAS6604-26 Bolt 1.40 NAS6604-27 Bolt 2.45 NAS6604-29 Bolt 1.95 NAS6604-30 Bolt 2.40 NAS6604-31 Bolt 1.75 NAS6604-32 Bolt 2.50 NAS6604-34 Bolt 1.85 NAS6604-38 Bolt (See NAS1304-38) NAS6604-44 Bolt 8.00 NAS6604H9 Bolt 3.50 NAS6605-5 Bolt 1.10 NAS6605-6 Bolt 1.25 NAS6605-8 Bolt 2.75 NAS6605-11 Bolt 2.45 NAS6605-24 Bolt 3.25 NAS6605-26 Bolt 2.00 NAS6605-28 Bolt 2.60 NAS6605-35 Bolt (See NAS1305-35) NAS6605-46 Bolt (See NAS1305-46) NAS6605-56 Bolt 8.25 NAS6606-16 Bolt 4.50 NAS6606-17 Bolt 3.25 NAS6606-24H Bolt (See NAS6606H24) * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 65 NAS6606-34 Bolt 3.25 NAS6606-42 Bolt 8.50 NAS6606-47 Bolt 9.00 NAS6606-49 Bolt (See NAS6606-50) NAS6606-50 Bolt 16.75 NAS6606-54 Bolt 9.50 NAS6606H24 Bolt 7.00 NAS9301B-4-02 Rivet .80 PAI-DE-CARD Deviation Card .85 PI0808S Plug .70 Q4509 Lamp (See B196-26) R0074-103 Life Raft Call R22BETA2 Beta II Logo Decal Stencil Set 24.00 R5049 A/C Registration Numbers 1.75* R5051 Alpha Logo Decal Stencil Set 24.00 R5052 Beta Logo Decal Stencil Set 24.00 R5053 HP Logo Decal Stencil Set 24.00 R5063 Inner Tube Replacement (See MT936-8) R5074 Neoprene Seal (See A226-8) R5111 Microlite AA 1 in. Insulation (4 sf. pieces only) 2.55/sf R5190 1/8 in. Ball for A522-3 .85 R5277 Resistor 1.50 R5313 .189 x 12 in. Drill 10.50 R5356 Bolt (See 86501970) R5357 Bolt 5.75 R5358 Bolt 32.50 R5364 Sprocket 19.00 R7156 A236-1-3 Scroll Set (For A649-2) 1,875.00 R7295 Fuel Cap Assy., Painted 24.50 R7926** Painting Fee, 100 Screwheads 120.00* RES10R Rheostat Resistor 43.50 RG-75906 Gasket 13.25 RH25 Resistor 3.75 RT-A400 Fire Extinguisher (See B381-1) R8016 A017 Swashplate Kit (Use w/ blue bearings) 85.00** * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. ** Please specify color. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 66 Effective January 15, 2008 R8017 A017 Swashplate Kit (Use w/ ball bearings) 22.00 R8096 Key, Duplicate (A/C S/N & PK# required) 12.00 R8186 Color Selector (Replaces M-3477/-3699) 10.00* R8266 10-600644-201 Magneto with Pins 1,433.00 RV4NAYSD502A Potentiometer 11.50 S-7008 Castered Wheel & Tire 227.00 S-83BZ TR Sight Gauge (See B563-1) S50P MR Sight Gauge (See B563-2) SA340TS Speaker, Siren 312.00 SAZ-4201E Starter Relay 27.25 SJ3401BK Velcro Loop, 1 in., Black (See B175-2) SJ3401TN Velcro Loop, 1 in., Tan (See B175-32) SJ3402BK Velcro Hook, 1 in., Black (See B175-1) SJ3402TN Velcro Hook, 1 in., Tan (See B175-31) SR-3035B Rivet .30 SS51149 Plug .65 SS51334 Hole Plug .70 SS51617-K2915 Plug .85 STD-8 Washer (Lycoming) 1.20* STD-35 Washer (Lycoming) 1.15* STD-160 Washer (Lycoming) .85* STD-475 Washer (Lycoming) .85* STD-713 Cotter Pin (Lycoming) 1.05* STD-853 Tee (Lycoming) 121.00* STD-1410 Nut (Lycoming) 1.85* STD-1727 Washer (Lycoming) 1.80* STD-1856 Screw (Lycoming) 3.00* STD-1925 Screw (Lycoming) 1.20* T102A Chip Detector, TR (See B566-2) T355-13 Inner Tube (See MT936-4) TA04111SC0304CR Clamp 10.50 TJ-120 Jack 7.50 TJT-120 Jack 10.75 TW102-21 Washer 2.10 U2-279 Trigger Switch 184.00 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 67 U190-0090S Spring Washer .17 U216-0100-S Spring Washer .45 U250-0145 Spring Washer (See U250-0185) U250-0185 Spring Washer .55 UREM38E Spark Plug 30.00 UREM40E Spark Plug 30.00 V3-1 Switch 11.00 V3-1001 Switch 16.50 VCF7-1000 Connector 1.40 VF7-41F11 Relay 11.00 W1282 Lens Retainer 30.50 W1283 Gasket 13.50 W1284G Lens, RH, Green 36.00 W1284R Lens, LH, Red 36.00 W1285PG14 Position Light, RH 188.00 W1285PR Position Light (See W1285PR14) W1285PR14 Position Light, LH 188.00 W1290-14 Lamp, 14V 30.50 X-1567 Wing Walk Compound (Quart) 51.00 Y11-7NX Key Blank 1.75 ZX-4183 Molding (See A226-9) 0003-00434 Window Crystal 47.50 0015-00723 Gasket 4.75 01-0450685-00 Clamp 24.25 010-00174-01 Antenna 214.00 01009214 Suppression Diode 20.75 012C O-Ring 1.40 01960 Bead Chain 1.25/ft 02-0350283-06 Light Head Assy., Red 32.75 0253-2-4 Bulkhead Adapter 9.75 0353-6-6 Bulkhead Union 13.00 04DU04 Bushing 2.25 06DU06 Bearing 3.75 06E19769-0.63 Gasket (Lycoming) .85* 06E19769-1.00 Gasket (Lycoming) 1.20* * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 68 Effective January 15, 2008 06E19769-1.25 Gasket (Lycoming) 1.20* 0710-015 Elbow 1.30 07DU12 Bearing 4.25 089-05534-0020 Screw 5.50 089-06541-0000 Screw 6.00 08DU06 Bearing 3.50 1.500-16 Black Vinyl Cap .40 1-480702-0 Housing (See B263-67) 10-126676 Placard 5.00 10-176487-121 Starting Vibrator, 14V 255.00 10-35937-10 Screw .90 10-4-2-N-0 Connector .75 10-600614-1 Magneto, LH 1,430.00 10-600644-201 Magneto, RH (See R8266) 10-821471-16 Ignition Harness (See M2402) 100057017 Lamp, 12V, Gray Base 9.75 10164-5 Button, Red 3.05 102MG11 Magnet 10.00 102149 Hourmeter (See D830-1) 10536 Gasket 1.90 10543-2 Screen 3.00 1058 Gasket (See A689-7) 10808-25 Cable Assy., Mag. P/U 25 ft. (Chadwick) Call* 110-2 Telatemp Tape 3.25 110-4 Telatemp Tape 3.25 11141L08-03B Strain Relief 19.75 11210-20 Cable Assy., Velo, 20 ft. (Chadwick) Call* 11210-50 Cable Assy., Velo, 50 ft. (Chadwick) Call* 12686 Spring (See D774-7) 13A Converter, DC-DC 12V-24V (Chadwick) Call*** 13-07900 License Holder 13.50 1465-70-104 Shunt 39.50 149-12HT/H Starter, 12V 640.00 15-4-N-0 Union 1.05 15-423 Gasket, Sender 4.75 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 69 16-A36 Gasket 8.50 1601-0414 Rivet (See 1693-0414) 1604-0412 Rivet (See B204-4) 1682-0412 Rivet (See B204-4) 1693-0410 Rivet (See B204-1) 1693-0414 Rivet (See B204-2) 17P47 Light Cap, White 6.50 2006-10 Antenna 48.00 2010 Snap Bushing 1.00 201298-1 Block 6.75 201298-3 Block (See 201298-1) 201355-1 Connector 5.50 206060-1 Plug 3.75 21FKF-518 Nut .70 21FKF-616 Nut 1.00 225395-1 Plug (See 225395-6) 225395-6 Plug 4.50 225396-1 Jack 8.25 225398-1 Jack (See 225398-6) 225398-6 Jack, Bulkhead 7.75 225555-6 Plug 24.00 225557-6 Plug 59.50 225973-4 Plug 36.50 232-353509-03 Tie, Black 1.10 25-4-2-N-0 Connector .95 2590 Hole Plug .20 2633 Hole Plug .13 2713 Hole Plug .25 2820 Knob 2.50 28701L-3F-3 Set Screw (See 52025) 3001 Antenna, ELT External 110.00 3030 Magnetic Pickup (Chadwick) Call* 3080-38 Cylinder Head Temperature Probe 103.00 3140-5 Cable Assy., DC with Clips (Chadwick) Call* 32B19549 Alternator Assy. (Lycoming) 798.00*** * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 70 Effective January 15, 2008 3300 Tracking Tape, TR, 20/sht 33.50 3382-1 Bracket Transducer (Chadwick) Call* 34B Carrying Case (Chadwick) Call* 34-0412070-63 Halogen Lamp 48.50 3529 Cable Assy. DC 50 ft. Ext. (Chadwick) Call* 354601 Fuse Block 1.15 3597 Chart Corrector (Chadwick) Call* 35984300931502 Warning Light, Red (See B198-2) 35984300933502 Warning Light, Yellow (See B198-1) 35S Flash Lamp (Chadwick) Call* 3606T23 Bead Chain (See 01960) 36B19484 Pulley, 60/70 Amp Alternator (Lycoming) 626.00* 3704-SE Knob, 10-32 Insert 2.50 3779T43 Ring 14.00 3898 Lamp 3.50 3MA1009-4 Pressure Relief Valve 159.00 3VX375 Belt, Alternator (See B173-1) 40-4-2-N-0 Elbow 1.15 40411G-05 Headset, David Clark, Straight Cord 360.00 41596-00 Screw .55 4270-1 Tracking Tape, MR, 20/sht 154.00 45-4-2-N-0 Elbow 1.35 471 Tape, Windshield (See A701-4) 4901B Knob 1.15 4RA1190-2 Hand Pump Fitting with Screw 150.00 5-108 O-Ring 1.10 50-1WD-1G Knob (See MS91528-0C1B) 50-4-N-0 Elbow 1.45 502106-0512 Screw (See 90272A240) 502260 Cover 64.00 50785K25 Fitting 1.80 511TS1-3 Toggle Switch (See B300-4) 52025 Set Screw .80 53E22144 Oil Bypass Valve Assy. (Lycoming) 317.00* 57485K62 Shaft Collar 3.00 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 71 60-4-2-N-0 Tee Fitting 1.35 601716-4 Terminal Block 22.00 601985-2 Jumper Tab .35 61173 Gasket (Lycoming) 1.40* 62224 Gasket (Lycoming) 1.65* 6241-G Valve Extension 2.05 6241-J Valve Extension 1.95 6241-M Valve Extension 1.60 6246-00088 Cylinder Head Temperature Meter, 14V 256.00 6246-00090 Oil Temperature Meter, 14V 256.00 6246-00468 Ammeter, 70 Amp, 14/28V 230.00 6246-00473 Fuel Quantity Meter, 14V 256.00 6246-00647 Oil Pressure Meter, 14V 256.00 62732 Cap, Tachometer (Lycoming) 52.00* 631 Protective Tape (See A701-3) 63D21408 Nipple, Injector (Lycoming) 22.25* 66224 Gasket, Carburetor (Lycoming) 1.05* 68C19622 Gear, Magneto Drive (Lycoming) 354.00* 6P47 Cap 15.00 70-4-N-0 Tee Fitting 1.80 7041101-2-1 Brush 45.00 71032 Pad (Lycoming) 7.75* 7105-S-Y-Z-Q-E Switch 5.25 71973 Gasket (Lycoming) 1.05* 72059 Gasket (Lycoming) 1.65* 7310 Velocimeter (Chadwick) Call* 75906 Gasket (Lycoming) 2.05* 76073-50 Oil Pressure Switch (See B426-1) 76510 Gasket (Lycoming) 1.60* 77611 Gasket (Lycoming) 7.00*** 812040ST Circuit Breaker 9.25 85-12-140-16 Stud 1.40 85-34-201-20 Retainer .20 85-35-295-15 Receptacle 1.25 85-46-101-39 Washer .25 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* 72 Effective January 15, 2008 8532-T-C-Q-E-2 Switch 10.25 86501970 Bolt 22.50 89 Bulb (SeeB196-2) 90272A240 Screw .10 90309A032 Spacer 3.25 90312A31 Lanyard 5.75 9074 Manual 8350, 8360 & 8370 (Chadwick) Call* 9075 Manual 135M-11 (Chadwick) Call* 9106PP Bearing 58.50 91251A029 Cap Screw 4.50 91259A723 Cap Screw Bolt 6.50 91772A120 Screw .30 92384A034 Pin 57.50 92470A113 Screw .08 92865A215 Cap Screw Bolt .40 94924A009 Wingnut .45 9529K13 Ball .15 95390A317 Circle Cotter .30 97-50-215-12 Latch 26.00 97-51-215-12 Lug 14.50 98404A390 Pin 7.75 98470A130 Self-Locking Pin 7.75 98870A370 Key 1.40 999-390 Dial Indicator (See MT352-1) 9HT4441 Extension, 3/4 x 8 in. 41.25 9HT47782 Socket, 3/4 x 1-1/2 in. 25.00 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 73 MT016-1 "C" Fitting Engine Hoist Assy. 303.00 MT050-1 Rigging Fixture, MR Blade 67.00 MT050-2 Rigging Fixture, TR Blade 56.00 MT053-1 Drain, MRGB 106.00 MT054-1 Drain Assy. 107.00 MT068-1 Horizontal StabilizerRigging 70.25 MT090-1 MR Trim Tab Bender 240.00 MT091-1 Holding Tool, Engine Ring Gear 94.25 MT091-3 Decal, "Caution: Torque..." 4.75 MT092-1 Fan Puller Assy. 176.00 MT092-3 Spacer 17.00 MT121-1 Bracket Assy., Magnetic P/U 92.00 MT122-1 Micrometer, MR Hub Bolt Stretch 959.00 MT141-3 Washer 5.75 MT146-1 Spacer Blocks,Swashplate Rigging 84.75 MT147-1 Air Bleed Tool Assy., MR Blade 276.00 MT173-4 Socket 35.75 MT173-5 Tool Set 343.00 MT173-6 Tube Weldment 175.00 MT173-7 Socket 26.00 MT173-8 Socket 49.50 MT200-1 Dial Indicator 140.00 MT201-1 Pressing Fixture Assy. 226.00 MT227-1 Tube, Bearing Press 56.75 MT234-1 Helicopter Lifting Fixture 504.00 MT260-6 TRDS Runout Indicator Kit 129.00 MT290-1 MR Blade Tie-Down Set 145.00 MT294-1 Retainer Assy., Collective Spring 113.00 MT295-1 TRGB Output Shaft Seal 284.00 MT295-3 Punch 62.50 MT295-6 Screw 39.00 MT295-10 Mandrel 208.00 MT329-1 Plug 46.75 MT329-2 Support Assy. 275.00** MT331-4 Bar, Sheave Alignment 64.50 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 74 Effective January 15, 2008 MT340-1 Float Gauge & Fill Gun Kit 318.00 MT340-2 Fill Gun Assy. 134.00 MT340-3 Gauge Assy. 186.00 MT344-1 V-Belt Tension Gauge Kit 60.25 MT344-2 Bar 12.00 MT346-1 Cradle Assy., Blade Support 677.00 MT346-2 Cradle Assy., Blade Support 551.00 MT347-4 Strut Assy., Aft 342.00 MT347-5 Strut Assy., Fwd 302.00 MT348-1 Clamp Assy. 251.00 MT349-1 MR Blade Support Assy. 2,550.00 MT349-2 Support Assy., Aft 1,209.00 MT349-3 Support Assy., Fwd 1,374.00 MT350-1 Drill Template 10.25 MT352-1 Gauge Assy., MR Blade Trim Tab 345.00 MT354-1 Teeter Moment Tool Assy. 243.00 MT357-1 .125 D. Cobalt Steel Drill 4.00 MT357-2 .375 D. Hand Reamer 89.00 MT357-4 Hex Ball Drive, Long, 3/8 in. 34.00* MT357-5 3/8 in. Drive Torque Adapter 39.50* MT358-1 .750 D. Spot Facing Assy. 144.00 MT359-1 Spring Scale 222.00 MT376-1 Blocks, MR Rigging 443.00 MT399-1 R22 Pilot Checklist (All others) 4.40* MT399-2 R22 Pilot Checklist (Beta II & Mariner II) 4.40* MT556-1 Tools, Elastomeric TR Bearing 347.00 MT556-2 Mandrel Assy. 182.00 MT556-5 Support 147.00 MT556-6 Cap 61.25 MT900-1 Ground Handling Tow Cart 6,400.00** MT900-3 Motor Assy. 983.00 MT900-4 Actuator Assy. 833.00 MT900-7 Charger Assy. 418.00 MT901-1 Frame Weldment 2,986.00 MT902-1 Weldment 421.00 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 75 MT903-1 Handle Weldment 615.00 MT903-10 Handle Weldment 615.00 MT904-1 Arm Assy., Long 1,306.00 MT904-2 Solenoid Assy. 173.00 MT904-3 Cover 28.75 MT905-1 Handle Assy. 1,431.00 MT905-2 Handle Assy. 1,713.00 MT905-3 Bearing 34.25 MT906-4 Block 29.25 MT909-1 Sleeve Weldment 245.00 MT909-2 Socket 125.00 MT909-5 Socket 255.00 MT910-1 Wire 21.25 MT910-2 Wire 75.00 MT911-1 Stopper 101.00 MT911-3 Arm 49.50 MT911-4 Plug 13.00 MT912-1 Spacer 56.50 MT913-1 Sprocket 96.25 MT914-1 Chain Assy. 64.75 MT914-3 Connecting Link 2.00 MT914-4 Chain Assy. 90.75 MT915-1 Bracket 56.75 MT915-2 Collar 66.00 MT915-3 Bracket 37.25 MT915-4 Collar 51.00 MT918-1 Cover 28.75 MT918-2 Cover 55.50 MT919-1 Grip Assy. 241.00 MT920-2 Spacer 20.00 MT920-3 Spacer 21.25 MT920-4 Spacer 34.00 MT920-5 Spacer 39.25 MT920-6 Spacer 33.00 MT920-11 Spacer 32.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* 76 Effective January 15, 2008 MT920-12 Spacer 23.75 MT920-13 Spacer 26.00 MT920-15 Spacer 10.00 MT922-1 Wire Harness Assy. 126.00 MT922-2 Wire Harness Assy. 27.25 MT922-5 Wire Harness Assy. 33.50 MT923-1 Wire Harness Assy. 260.00 MT923-3 Wire Harness Assy. 284.00 MT923-4 Wire Harness Assy. 361.00 MT925-1 Box Assy. (See MT970-1 & MT948-1) MT926-5 Card Assy. 46.25 MT928-7 Weldment 199.00 MT929-1 Long Arm Weldment 623.00 MT930-1 Bracket 37.00 MT931-1 Cover Assy., Aft 341.00 MT932-1 Cover Assy., Fwd 485.00 MT932-3 Cover Assy. 506.00 MT932-4 Cover 343.00 MT933-1 Mirror Assy. 203.00 MT933-2 Mirror 55.50 MT933-3 Brace 69.50 MT933-4 Hinge 45.25 MT933-5 Mirror Assy. 230.00 MT935-1 Decal, "Brake Lock" 5.25 MT935-8 Decal, "Charger Voltage..." 5.50 MT935-9 Decal, "R22" 4.75 MT935-10 Decal, "R44" 5.25 MT936-3 Tire 25.50 MT936-4 Inner Tube Replacement 8.50 MT936-7 Tire 17.25 MT936-8 Inner Tube Replacement 8.75 MT938-1 Tray 59.00 MT938-2 Clip 31.75 MT939-1 Extension 43.00 MT940-1 Cap, Light 22.75 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 77 MT943-1 Brake Control 111.00 MT943-2 Brake Control 102.00 MT945-1 Arm Assy. 147.00 MT945-3 Plate 26.25 MT945-5 Lever 51.75 MT945-6 Bracket 37.25 MT945-7 Drum 168.00 MT945-8 Bracket 40.50 MT945-9 Back Assy. 44.75 MT946-1 Door 56.25 MT946-2 Door 52.25 MT946-3 Hinge 32.75 MT946-4 Hinge 43.00 MT946-5 Door 63.75 MT947-1 Rim, with Hub 9.75 MT947-2 Rim, without Hub 9.75 MT950-1 Ground Handling Tow Cart, Universal 7,400.00** MT951-1 Weldment 2,995.00 MT952-1 Weldment 459.00 MT954-1 Arm Assy., Long 1,910.00 MT954-4 Washer 35.25 MT954-5 Pad 33.50 MT955-1 Battery, 12V 373.00 MT959-2 Shaft 267.00 MT959-3 Hub 682.00 MT962-2 Shaft 123.00 MT970-1 Box Assy., Electrical 1,557.00 MT972-1 Switch Assy. 199.00 MT972-5 Solenoid Assy. 261.00 MT975-1 Box Assy., Electrical Control 2,397.00 MT996-1 Speed Reducer 412.00 MT997-1 Weldment 132.00 MT997-3 Bar 140.00 MT997-6 Cradle 118.00 MT999-1 Actuator 970.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List R22 SPECIAL KITS** PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 78 KI-5 COMM Antenna Instl. Kit 153.00 KI-18 Vertical Firewall Doubler Kit 44.50 KI-22 Alternator Control Unit Conversion Kit 472.00 KI-24 R22 Minimum Spares Kit 6,600.00 KI-28 P/P Sleeve Kit (See KI-130) KI-40-1 Dual Tachometer Wire Instl. Kit 11.75 KI-40-2 Wire Assy. 2.80 KI-40-3 Wire Assy. 2.80 KI-41 Adj. Cyclic Spring Instl. Kit (S/N 0001-0549) 57.75 KI-45 Hard Point On Belly Kit 569.00 KI-49 Aluminum Ball, Swashplate Kit 1,500.00 KI-57 Blind Encoder Instl. Kit (Incl. B240-2 Encoder) 440.00 KI-58 Starter Conversion Kit 700.00 KI-60A Yoke Conversion Kit for ships with Rotor Brake 807.00 KI-60B Yoke Conversion Kit for ships without Rotor Brake 853.00 KI-61 Landing Light Relay Conversion Kit 46.00 KI-63 A236-1-3 Scroll Set for ships with A649-1 1,795.00 KI-64A TR Guard Kit with Doubler 270.00 KI-65 Attitude Horizon Instl. Kit Call KI-65-3 Attitude Horizon Instl. Kit (See KI-65) KI-65-7 Attitude Horizon w/Inclinometer Kit (See KI-65) KI-66 Directional Gyro Instl. Kit Call KI-67-2 Governor Field Instl. Kit for ships without Gov. 5,150.00 KI-67-3 Governor Upgrade Kit for ships with B247-1 1,950.00 KI-68 Model 2000 Balancer System (Chadwick) Call* KI-68A Model 2000 Plus Balancer System (Chadwick) Call*** KI-69-6 Template 11.50 KI-69-7 Low RPM Warning Unit Conversion Kit 635.00 KI-73 Tailcone Doubler Instl. Kit 42.75 KI-79-1 ELT Instl. Kit 881.00 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List R22 SPECIAL KITS PART NUMBER DESCRIPTION PRICE* Effective January 15, 2008 79 KI-79-2 ELT Instl. Kit, Canada Only 1,300.00 KI-81 Removable TR Pedal Locking Pin Instl. Kit 20.00 KI-83-1 Float Repair Kit, Utility 939.00 KI-89 ELT Remote Switch Instl. Kit 196.00 KI-89B Wire Harness Assy. 25.00 KI-94 B224 Damper Conversion Kit 245.00 KI-118-1 Fuel Tank Upgrade without Aux Tank 73.75 KI-118-2 Fuel Tank Upgrade with Aux Tank 116.00 KI-130 B439-1 P/P Tube Guide Upgrade Kit 410.00 KI-154 Aft Battery Relay Upgrade Kit, 14V 495.00 KI-158 Fwd Battery Relay Upgrade Kit, 14V 515.00 KI-160 R22 Full-Flow Oil Filter Kit 503.00 KI-164 Carbon Monoxide Detector Kit 250.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List R22 PILOT ACCESSORIES** PART NO. DESCRIPTION PRICE* Effective January 15, 2008 80 R8615-34L Flight Suit, Nomex III, Tan 130.00 R8615-34R Flight Suit, Nomex III, Tan 130.00 R8615-34S Flight Suit, Nomex III, Tan 130.00 R8615-36L Flight Suit, Nomex III, Tan 130.00 R8615-36R Flight Suit, Nomex III, Tan 130.00 R8615-36S Flight Suit, Nomex III, Tan 130.00 R8615-38L Flight Suit, Nomex III, Tan 130.00 R8615-38R Flight Suit, Nomex III, Tan 130.00 R8615-38S Flight Suit, Nomex III, Tan 130.00 R8615-40L Flight Suit, Nomex III, Tan 130.00 R8615-40R Flight Suit, Nomex III, Tan 130.00 R8615-40S Flight Suit, Nomex III, Tan 130.00 R8615-42L Flight Suit, Nomex III, Tan 130.00 R8615-42R Flight Suit, Nomex III, Tan 130.00 R8615-42S Flight Suit, Nomex III, Tan 130.00 R8615-44L Flight Suit, Nomex III, Tan 130.00 R8615-44R Flight Suit, Nomex III, Tan 130.00 R8615-44S Flight Suit, Nomex III, Tan 130.00 R8615-46L Flight Suit, Nomex III, Tan 130.00 R8615-46R Flight Suit, Nomex III, Tan 130.00 R8615-46S Flight Suit, Nomex III, Tan 130.00 R8615-48L Flight Suit, Nomex III, Tan 130.00 R8615-48R Flight Suit, Nomex III, Tan 130.00 R8615-50L Flight Suit, Nomex III, Tan 130.00 R8615-50R Flight Suit, Nomex III, Tan 130.00 R8579 R22 Backpack, Black 16.00 R7106 R22 Brochure .40* R8560 R22/R44 Coffee Mug, Slate Blue 5.00 R8617 R22 Decal, Robinson Logo .50 R8619 Decal, "RHC" Gold with Blue Letters .50 * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List PILOT ACCESSORIES PART NO. DESCRIPTION PRICE* Effective January 15, 2008 81 R8620 Decal, "RHC" Blue with Gold Letters .50 R8586 R22 Document Bag, Black 18.00 R8588 R22 Flight Jacket, Black (L) 74.00 R8589 R22 Flight Jacket, Black (XL) 74.00 R8590 R22 Flight Jacket, Black (XXL) 77.00 R8182 R22 Flight Jacket, Navy (M) 87.00 R8183 R22 Flight Jacket, Navy (L) 87.00 R8184 R22 Flight Jacket, Navy (XL) 87.00 R8185 R22 Flight Jacket, Navy (XXL) 87.00 R7458 R22 Flight Jacket, Royal (M) 65.00 R8561 R22 Hat, Navy, Brushed Cotton 10.00 R8563 R22 Hat, Navy, Cotton Blend 10.00 R8591 R22 Key Ring, Black Leather 6.00 R8608 R22 Lapel Pin 2.00 R8110 R22/R44 License Plate Frame, Silver 7.00 R8145 R22 Luggage Tag, Navy Leather 6.00 R8540 R22 L/S Twill Shirt, Khaki (S) 25.00 R8541 R22 L/S Twill Shirt, Khaki (M) 25.00 R8542 R22 L/S Twill Shirt, Khaki (L) 25.00 R8543 R22 L/S Twill Shirt, Khaki (XL) 25.00 R8544 R22 L/S Twill Shirt, Khaki (XXL) 27.00 R8593 R22 L/S Twill Shirt, Navy (S) 25.00 R8594 R22 L/S Twill Shirt, Navy (M) 25.00 R8595 R22 L/S Twill Shirt, Navy (L) 25.00 R8596 R22 L/S Twill Shirt, Navy (XL) 25.00 R8597 R22 L/S Twill Shirt, Navy (XXL) 27.00 R8570 R22 L/S T-Shirt, Navy (S) 11.00 R8571 R22 L/S T-Shirt, Navy (M) 11.00 R8572 R22 L/S T-Shirt, Navy (S) 11.00 R8573 R22 L/S T-Shirt, Navy (XL) 11.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List PILOT ACCESSORIES** PART NO. DESCRIPTION PRICE* 82 Effective January 15, 2008 R8574 R22 L/S T-Shirt, Navy (XXL) 13.00 R7021 R22 Model 150.00 R8128 R22/R44 Necktie, Black 11.00 R8127 R22/R44 Necktie, Navy 11.00 R8603 R22 Overnight Bag, Black 51.00 R7319 R22 Patch, Sew-on 3.00 R8152 R22 Polo Shirt, Gray (S) 24.00 R8153 R22 Polo Shirt, Gray (M) 24.00 R8155 R22 Polo Shirt, Gray (XL) 24.00 R8156 R22 Polo Shirt, Gray (XXL) 28.00 R8520 R22 Polo Shirt, Khaki (S) 26.00 R8521 R22 Polo Shirt, Khaki (M) 26.00 R8522 R22 Polo Shirt, Khaki (L) 26.00 R8523 R22 Polo Shirt, Khaki (XL) 26.00 R8524 R22 Polo Shirt, Khaki (XXL) 29.00 R8530 R22 Polo Shirt, Navy (S) 26.00 R8531 R22 Polo Shirt, Navy (M) 26.00 R8532 R22 Polo Shirt, Navy (L) 26.00 R8533 R22 Polo Shirt, Navy (XL) 26.00 R8534 R22 Polo Shirt, Navy (XXL) 29.00 R8150 R22 Polo Shirt, Navy Herringbone (XL) 28.00 R8151 R22 Polo Shirt, Navy Herringbone (XXL) 28.00 R7478 R22 Polo Shirt, Royal (S) 26.00 R7482 R22 Polo Shirt, Royal (XXL) 26.00 R8163 R22 Pullover Fleece, Navy (M) 47.00 R8165 R22 Pullover Fleece, Navy (XL) 47.00 R8500 R22 Sweatshirt, 1/4 Zip, Navy (S) 25.00 R8501 R22 Sweatshirt, 1/4 Zip, Navy (M) 25.00 R8502 R22 Sweatshirt, 1/4 Zip, Navy (L) 25.00 R8503 R22 Sweatshirt, 1/4 Zip, Navy (XL) 25.00 * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List PILOT ACCESSORIES** PART NO. DESCRIPTION PRICE* Effective January 15, 2008 83 R8504 R22 Sweatshirt, 1/4 Zip, Navy (XXL) 27.00 R8510 R22 Sweatshirt, Hooded, Khaki (S) 23.00 R8511 R22 Sweatshirt, Hooded, Khaki (M) 23.00 R8512 R22 Sweatshirt, Hooded, Khaki (L) 23.00 R8513 R22 Sweatshirt, Hooded, Khaki (XL) 23.00 R8514 R22 Sweatshirt, Hooded, Khaki (XXL) 26.00 R8565 R22/R44 T-Shirt, White (S) 9.00 R8566 R22/R44 T-Shirt, White (M) 9.00 R8567 R22/R44 T-Shirt, White (L) 9.00 R8568 R22/R44 T-Shirt, White (XL) 9.00 R8569 R22/R44 T-Shirt, White (XXL) 11.00 R8610 R22/R44 T-Shirt, White w/Navy Sleeves (S) 11.00 R8611 R22/R44 T-Shirt, White w/Navy Sleeves (M) 11.00 R8612 R22/R44 T-Shirt, White w/Navy Sleeves (L) 11.00 R8613 R22/R44 T-Shirt, White w/Navy Sleeves (XL) 11.00 R8614 R22/R44 T-Shirt, White w/Navy Sleeves (XXL) 13.00 R8575 R22/R44 Kid's T-Shirt, White w/Navy Sleeves (S) 9.00 R8576 R22/R44 Kid's T-Shirt, White w/Navy Sleeves (M) 9.00 R8577 R22/R44 Kid's T-Shirt, White w/Navy Sleeves (L) 9.00 R8578 R22/R44 Kid's T-Shirt, White w/Navy Sleeves (XL) 9.00 R8550 R22 Women's T-Shirt, Navy (S) 16.00 R8551 R22 Women's T-Shirt, Navy (M) 16.00 R8552 R22 Women's T-Shirt, Navy (L) 16.00 R8553 R22 Women's T-Shirt, Navy (XL) 16.00 R8554 R22 Women's T-Shirt, Navy (XXL) 19.00** * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List R22 MANUALS** PART NO. DESCRIPTION PRICE* Effective January 15, 2008 84 R7943 Awareness Training Kit, DVD 30.00* R7322 Awareness Training Kit, NTSC Video 20.00* R8187 Awareness Training Kit, PAL Video 20.00* R7042 R22 Flight Training Guide, Private 30.00 R7043 R22 Parts Catalog & Maintenance Manual 185.00 R7045 R22 Pilot's Operating Handbook 40.00 R8059 R22 Spanish Maintenance Manual 105.00 60297-16 O-320 Engine Operator's Manual (Lycoming) 20.00* 60297-12 O-360 Engine Operator's Manual (Lycoming) 20.00* SUBSCRIPTION SERVICE R7046 Class A Subscription - Incl. Future Safety Notices 10.00/Yr* & Revisions to Pilot's Operating Handbook R7047 Class B Subscription - Incl. Class A, Plus Future 20.00/Yr* Service Bulletins & Service Letters R7048 Class C Subscription - Incl. Class B, Plus Future 30.00/Yr* Revisions to Maintenance Manual & Parts Catalog R7109 Complete Set of R22 Service Bulletins & Letters 30.00* R7110 Complete Set of Safety Notices 10.00* * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List R22 OVERHAULED EXCHANGE COMPONENTS PART NO. DESCRIPTION EXCHANGE PRICE* CORE DEPOSIT Effective January 15, 2008 85 R9146 A005-6 MR Assy. O/H (Incl. 2 new 29,100.00 2,350.00* Blades, Spindles, Bearings) R9040 A006-1/-6 MR Gearbox & Mast Assy. 7,480.00 5,900.00* (O/H at 2000 hrs. Incl. Gears, Brgs, Seals, etc.) R9042 A007-5 Fan Shaft, Bearing & 580.00 480.00* Housing Assy. O/H (Bearing replaced) R9002 A017-2 MR Swashplate Assy. O/H 1,640.00 800.00* (Does not include replacement of B149-1) R9004 A018-1 Clutch Assy. O/H 3,720.00 1,900.00* R9006 A018-2 Clutch Assy. (Metalized) O/H 3,720.00 2,500.00* R9008 A021-1 TR Gearbox Assy. O/H 2,970.00 1,600.00* R9010 A031-1 Pitch Control O/H 760.00 250.00* R9012 A051-1 Actuator Assy. O/H 2,640.00 650.00* R9052 A064-3 Clock O/H, 14V 125.00 121.00* R9014 A184-3 Bearing Assy. O/H 330.00 200.00* R9056 A569-5 Low RPM Unit O/H 310.00 75.00* R9058 A599-1 Airspeed O/H 140.00 46.00* R9060 A600-1 Manifold Gauge O/H 320.00 93.00* R9062 A600-2 Manifold Gauge O/H 320.00 93.00* R9064 A600-3 Manifold Gauge O/H 320.00 93.00* R9066 A600-5 Manifold Gauge O/H 320.00 93.00* * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List R22 OVERHAULED EXCHANGE COMPONENTS PART NO. DESCRIPTION EXCHANGE PRICE* CORE DEPOSIT 86 Effective January 15, 2008 R9068 A602-1 Rate of Climb O/H 235.00 62.00* R9070 A602-2 Rate of Climb O/H 175.00 46.00* R9072 A604-2 Carb. Air Temp. Gauge O/H 195.00 45.00* R9074 A613-1 Altimeter O/H 215.00 56.00* R9076 A613-2 Altimeter O/H 235.00 56.00* R9020 A628-4-5 Harness Assy. O/H 290.00 89.00* R9080 A708-1 Power Supply O/H 240.00 45.00* R9022 A792-2 Dual Tachometer O/H 710.00 850.00* R9084 AA80-020 Intervox O/H 230.00 332.00* R9110 ALX-8521LS/RS Alternator O/H 590.00 400.00* R9112 ALY-8520LS/RS Alternator O/H 455.00 230.00* R9086 B021-1 TR Gearbox Assy. O/H 3,400.00 1,500.00* R9026 B174-1 Fanwheel Assy. O/H 890.00 575.00* R9092 B191-3 Attitude Horizon O/H 730.00 890.00* R9028 B224-1 TR Drive Shaft O/H 900.00 400.00* R9030 B224-3 TR Drive Shaft O/H 900.00 400.00* R9032 B240-1 Blind Encoder Exchange 540.00 350.00* R9148 B240-2 Blind Encoder Exchange 160.00 90.00* R9094 B247-5 Governor Assy. O/H 580.00 620.00* * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List R22 OVERHAULED EXCHANGE COMPONENTS PART NO. DESCRIPTION EXCHANGE PRICE* CORE DEPOSIT Effective January 15, 2008 87 R9034 B286-2 Governor Control O/H 505.00 200.00* R9100 B341-1 O.A.T. Gauge O/H 100.00 85.00* R9102 B823-1 Attitude Horizon O/H 1,990.00 950.00* R9104 B823-2 Directional Gyro O/H 730.00 1,950.00* R9106 B823-3 Attitude Horizon w/Incl. O/H 2,075.00 950.00* R9036 BC315-100-2 StarterO/H 540.00 175.00* R9114 KG102A Remote Gyro O/H 2,310.00 1,700.00* R9116 KI525A HSI Indicator O/H 2,950.00 1,950.00* R9120 KT-76A Transponder O/H 795.00 515.00* R9122 KX0155-XX NAV/COM O/H 985.00 1,300.00* R9124 KY197A Transceiver O/H 2,090.00 625.00* NOTE: Core deposits refunded only when customer’s component is received complete and undamaged. Deductions are made if parts normally reusable are not serviceable. The RHC component return authorization form must accompany cores and reference the invoice upon which the exchange components were purchased. The RHC standard warranty applies to overhauled components. * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List R22 COMPONENTS RETURNED FOR SERVICE PART NO. DESCRIPTION PRICE* Effective January 15, 2008 88 R8039 A005-3 Spindle Bearing (2 Blades) 2,310.00 R7091 A005-4 MR Hub (A648-1 Bearing only) 1,020.00 R7092 A005-5 MR Hub Bearing & Journal 2,990.00 (Incl. Washers, Nuts & Bolts) R7094 A008-2 TR Blades & Hub Bearing 3,760.00 R7390 A008-2 TR Blades & Hub Bearing (Elastomeric) 4,180.00 R7097 A016-2 MR Blade Refinish (1 Blade) 950.00* R7099 A020/A046 Frame Insp/Repair (1 Frame) 185.00* R7087 A023 Tailcone Refinish 660.00* R7098 A029-1 TR Blade Refinish (1 Blade) 160.00* R7095 A030-1 TR Hub Bearing 540.00 R7484 A062-1 TR Hub Bearing (Elastomeric) 750.00** * Prices are subject to change without notice. Normal discount does not apply. * No discount applies. R22 Spare Parts Price List WINDOW REPAIR/REPLACEMENT PART NO. DESCRIPTION PRICE* Effective January 15, 2008 89 R5930 A026-3 LH Clear Window 750.00 R5931 A026-4 RH Clear Window 750.00 R5932 A026-13 LH Tinted Window 750.00 R5933 A026-14 RH Tinted Window 750.00 R5934 A026-17 LH Bubble Clear Window 840.00 R5935 A026-18 RH Bubble Clear Window 840.00 R5936 A026-21 LH Bubble Tinted Window 840.00 R5937 A026-22 RH Bubble Tinted Window 840.00 (Repair takes 3 to 4 weeks minimum.) WARNING: Window replacement involves the debonding and relaminating of door frames. This process can cause the doors to change shape resulting in the door not fitting properly or requiring substantial field modification to refit the door. In some cases the door may require replacement. All window replacement is done entirely at owner’s risk. * Prices are subject to change without notice. Normal discount does not apply. R22 Spare Parts Price List SHIPPING CRATES** PART NO. DESCRIPTION PRICE* Effective January 15, 2008 90 R5167 A006 MR Gearbox Crate 230.00* 69” x 19” x 21” Approximate crated weight: 155 lbs. R5171 A016 MR Blade Crate 250.00* 165” x 15” x 17” Approximate crated weight: 260 lbs. R5172 A023 Tailcone Crate 290.00* 153” x 21” x 19” Approximate crated weight: 210 lbs. R5169 A026 Door Crate (cardboard) 92.00* 28” x 8” x 56” Approximate crated weight: 18 lbs. R7422 A034 Float Crate 420.00* 21” x 36” x 144” R5168 A121 P/P Tube & B224 TR Drive Shaft Crate 150.00* 161” x 12” x 9” Approximate Crated weight: 90 lbs. R5170 A274/C274 Windshield Crate 68.00* 71” x 41” x 25” R7415 R22 MR Blade (4 Blades)/Tailcone Crate 330.00* 159” x 26” x 22” MT899-1 Tow Cart Crate 330.00* 31” x 37” x 64” RHC WARRANTY AND RETURN POLICY** The current 1-year or 1000-hour RHC Limited Warranty applies to all parts and components purchased from RHC. No unused parts may be returned to RHC for credit if the parts show any indication whatsoever of use or damage, or if the cost of the individual part was less than $25 (U.S.). Parts returned within 30 days of purchase will be assessed a 20% restocking fee. No parts may be returned after 30 days without prior RHC approval. Any parts approved for return after 30 days will be assessed a 50% restocking fee. * Prices are subject to change without notice. Normal discount does not apply. * No discount applies.
