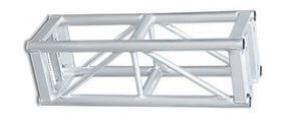

TRUSSBROKER 12" BOLTED TRUSS



12"  square Bolted Truss is the most common all-purpose truss used. Originally brought to market by Thomas Engineering and later by Tomcat
for the touring shows in the 70's. It is now a generic style made by many more manufacturers, and available in varying materials and wall thickneses,

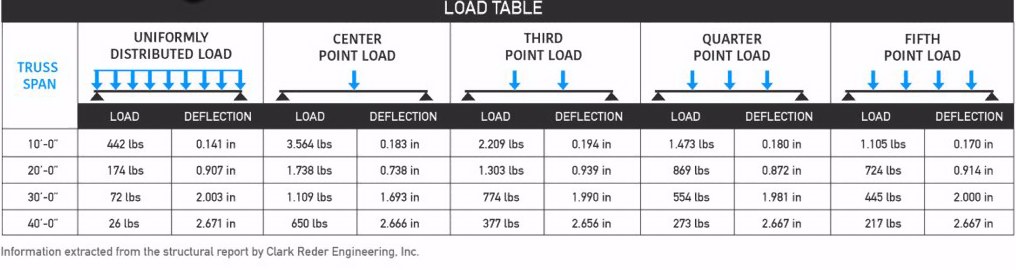

but all maintain a compatability with each other in terms of gereral size and bolt patterns. Make sure to check engineers certification for load weights.
Our truss matches or exceeds the standard numbers for medium duty 12" truss. Compatible lighter duty truss (Expo Truss) is availble which is lighter weight,
used more for decor use. So make sure you get the right truss for your application.
Square truss is easy to configure with 6 way corners, so any design is easy to create.
We have varying lengths, spacers for critical dimensions, base plates, carts and clamps.  All new truss come with bolt sets. Shipping from Los Angeles, Ca.
USED Gear - we often have used truss in stock, usually used one of for special projects such as trade shows or convention - often like new or indeed un-used

Post Pandemic - PROMO Pricing!
See used tradeshow inventory below - click here!

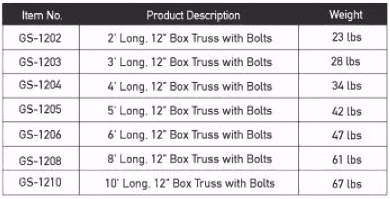

Square 12" Bolted Box Truss                                 LIST       PROMO
GS-1202 2' Long,    12" Box Truss with Bolts   $449.95   $299.99
GS-1203 3' Long,    12" Box Truss with Bolts   $529.95   $349.99
GS-1204 4' Long,    12" Box Truss with Bolts   $589.95   $389.99
GS-1205 5' Long,    12" Box Truss with Bolts   $679.95   $449.99
GS-1206 6' Long,    12" Box Truss with Bolts   $749.95   $499.99
GS-1208 8' Long,    12" Box Truss with Bolts   $869.95   $579.99
GS-1210 10' Long,  12" Box Truss with Bolts   $979.99   $649.99

Corners
GS-F12CB 12" Flush Corner Block, 6-Way       $659.95 $439.99
GS-12CB 12" Pro Corner Block, 6-Way             $749.95 $499.99
Square 20" Bolted Box
GS-2002 2' Long, 20.5" Box Truss with Bolts    $679.95     $449.99.
GS-2003 3' Long, 20.5" Box Truss with Bolts    $779.95     $519.99.
GS-2004 4' Long, 20.5" Box Truss with Bolts    $839.95     $559.99 .
GS-2005 5' Long, 20.5" Box Truss with Bolts    $959.95     $639.99.
GS-2006 6' Long, 20.5" Box Truss with Bolts    $1,159.95  $769.99.
GS-2008 8' Long, 20.5" Box Truss with Bolts    $1,409.95  $939.99.
GS-2010 10' Long, 20.5" Box Truss with Bolts  $1,799.95  $1,199.99 .

Corner Block
GS-20CB 20.5"    Pro Corner Block, 6-Way         $1,169.95 $779.99 .
Square Conical Box Truss
GS34-025 0.82ft (0.25m)     Square Truss Segment   $239.95   $159.99
GS34-050 1.64ft (0.5m)        Square Truss Segment   $289.95   $189.99
GS34-100 3.28ft (1.0m)        Square Truss Segment   $359.95   $239.99
GS34-150 4.92ft (1.5m)        Square Truss Segment   $449.95   $299.99
GS34-200 6.56ft (2.0m)        Square Truss Segment   $509.95   $339.99
GS34-250 8.20ft (2.5m)        Square Truss Segment   $569.95   $379.99
GS34-300 9.84ft (3.0m)        Square Truss Segment   $659.95   $439.99

Circle Truss
GS34-300CT 9.84ft (3.0m) Circle Square Truss, 4 Sections   $3,299.95   $2,199.99 .
GS34-200CT 6.56ft (2.0m) Circle Square Truss, 2 Sections   $2,549.95   $1,699.99 .

Corners
GS34-BC2W 12" Corner Block w/ 8 Conical Connectors          $449.95    $299.99 .
GS34-290BC 2-Way 90-degree Corner                                        $419.95    $279.99
GS34-VAC180 Book Hinge 0-180 Degree for GS34 Conical   $449.95    $299.99

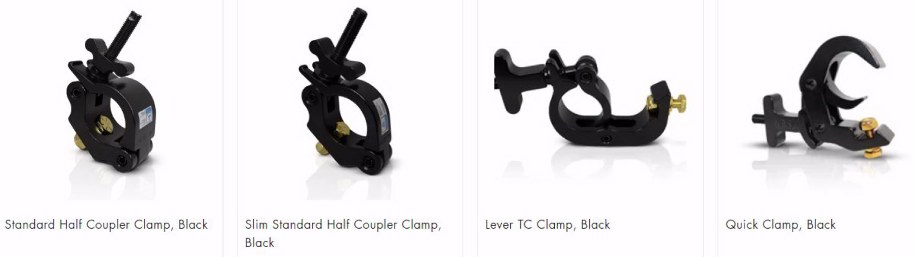

CLAMPS
GS-C102P        Standard Half Coupler Clamp, Black                   $34.95     $24.99 .
GS-C104P        Slim Half Coupler Clamp, Black                           $29.95     $19.99 .
GS-C106P        Lever TC Clamp, Black                                         $37.95     $26.99 .
GS-C108P       Quick Clamp, Black                                                $37.95      $26.99 .

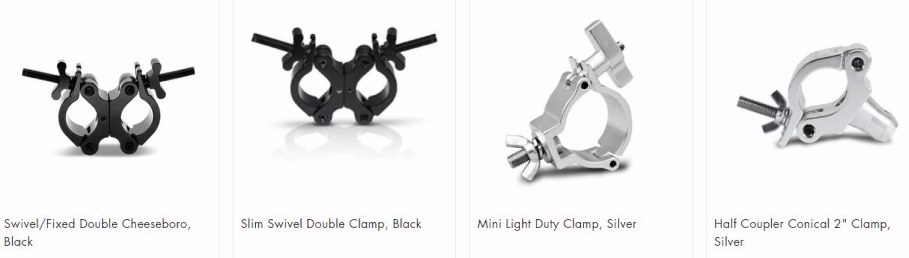

GS-C110P       Fixed/Swivel Double Cheeseboro, Black             $52.95      $34.99 .
GS-C112P       Slim Swivel Double Clamp, Black                          $41.95     $27.99.
GS-C113         Mini Light Duty Clamp, Silver                                   $16.95     $10.99 .
GS-C114         Half Coupler Conical Clamp, Silver                        $32.95      $21.99 .
GS-M10EYE    M10 Eye Bolt for C106P & C108P                        $7.95       $3.99.
GS-M12EYE    M12 Eye Bolt for GS-C102P                                  $8.95       $4.99 .

Special package pricing on larger orders - please ask for quote




  Tradeshow Booth Special - No boxes - some trucking scratches possibly
12" Special - 4 pcs 10 ft - $2299.00 (Normal cost $2596.00)
4 pcs 5 ft - $1399.00 (Normal cost $1796.00)
While this stock last only!

.
